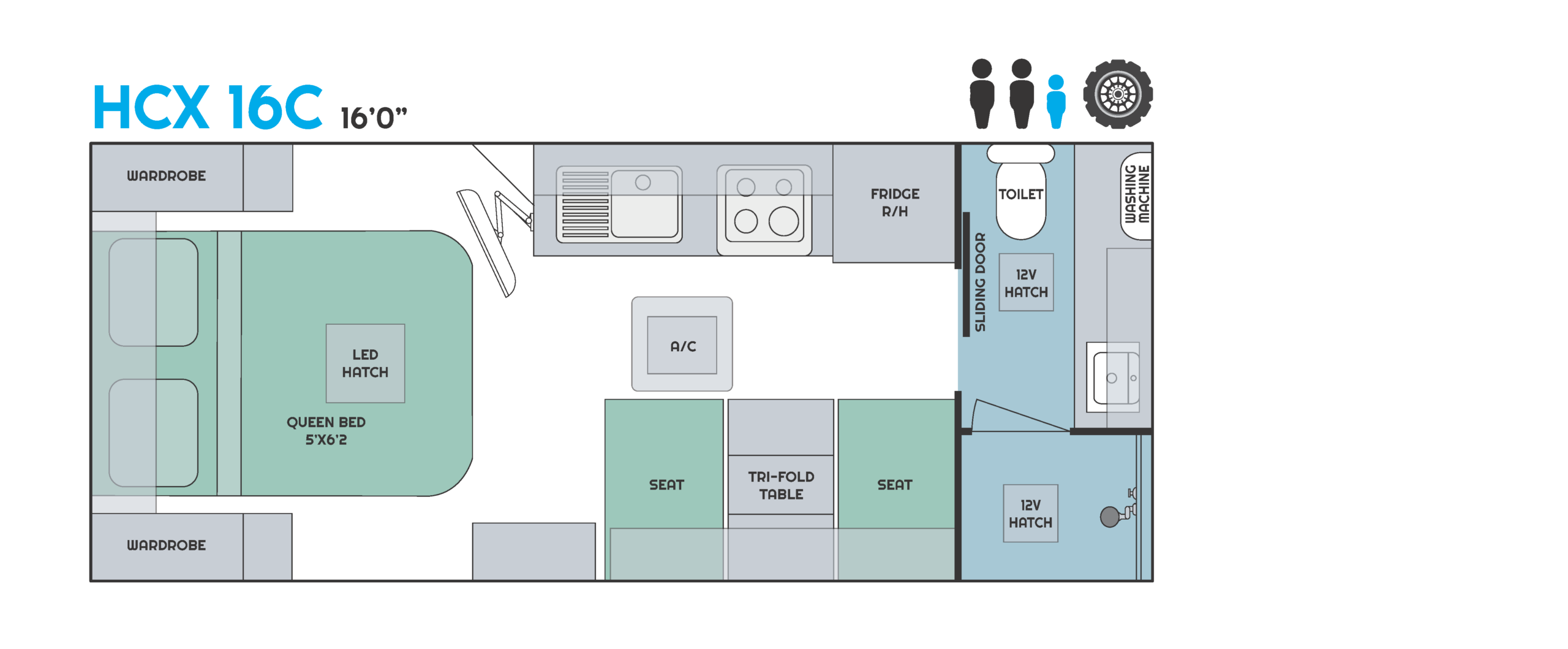

Floor Plan

HCX 16C Dimensions

Length : 16′
Sleeps : 2
APPROX TARE KG : Contact Dealer
APPROX BALL KG : Contact Dealer
TOTAL LENGTH – mm : TBC
HEIGHT – mm (inc Air-Con) : TBC
WIDTH – mm (inc Awning) : 2250mm

Technical Specifications

  • Heavy duty 3 arm bumper
  • Twin safety chains
  • 8” jockey wheel
  • Checker Plate tank guards
  • Drop down stabilizer legs
  • Breakaway safety system
  • Galvanised wheel arches
  • 12” electric brakes
  • 400mm drawbar extension
  • Batteries chassis mounted – offside

  • Supagal Australian made chassis
  • 4” heavy duty chassis
  • 265/75/r17 mud tyres
  • Custom alloy wheels
  • 2 x bolt on jerry can holders to rear bumper
  • 1 x spare wheel to rear bumper
  • Aluminium fold out solid step with handle
  • Alpha extreme duty dual shock independent suspension – 3t
  • DO35 Hitchmaster coupling
  • Security mesh locking door
  • Radius corner main door
  • Large skylight over bed with blind and flyscreen
  • 600mm Checker Plate
  • 2 x picnic tables
  • Checker Plate wheel spats
  • King size toolbox with large fridge slide and storage
  • 2250mm overall width
  • One piece composite walls
  • One piece composite front/roof/rear
  • 13 ft wind out awning
  • Double glazed and tinted Push-out windows
  • ‘Midge proof‘ flyscreens and blockout blinds to all windows
  • Fully galvanised lined tunnel boot
  • Stainless steel pull out kitchen to tunnel boot”
  • Fold out solid step with handle
  • Smooth glide drawers on metal runners
  • Separate shower and toilet ensuite with glass shower door
  • Wardrobe cutouts with 240V plugs and 12v USB points
  • Laminate splashback and benchtops
  • 2 x single towel rails and toilet roll holder
  • Bedhead padding
  • LED feature strip lighting above bed and kitchen overhead cupboards
  • Premium Vinyl flooring
  • Smoke detector
  • Fire extinguisher
  • 6’2 Pillow-top mattress
  • One piece composite floor
  • Lift-up under bed storage
  • Square edge profile benchtops
  • Internal roof height of 6’6
  • Mirror in ensuite
  • Latches with soft open gas struts
  • Deep bowl stainless steel kitchen sink with drainer
  • Filtered water tap at kitchen sink
  • Combi diesel heater/hot water service
  • Cassette toilet
  • A frame mains pressure tap
  • 12v water pump
  • Flick mixer taps (kitchen and ensuite)
  • Mains pressure water inlet
  • Waste water outlet
  • 2 x Lockable water tank inlet
  • 2 x 65L Freshwater tanks
  • 1 x 65L Grey water tank
  • China vanity basin to ensuite
  • Combi diesel heater and HWS with vents to bedroom, lounge and ensuite
  • 2 burner induction cooktop to kitchen
  • 2 burner induction cooktop to slide out kitchen
  • A/C reverse cycle
  • 12v rangehood
  • 12 pin trailer plug with charging and fridge cooling capabilities
  • 148L compressor fridge
  • 240V 15amp inlet and 240V 10amp outlet
  • Reversing camera and monitoring kit
  • 50amp Anderson plug to chassis offside
  • 50amp Anderson plug to toolbox next to fridge slide
  • 12v fan hatch to toilet and shower
  • 240V double power point in tunnel boot
    • 2 x annexe bug lights
    • LED work spotlights to front and rear (switched separately)
    • 2 x LED reading lights in bedroom
    • 2 x LED reading lights to lounge
    • Multidirectional TV antenna
    • Battery pack – 1 x 300amp lithium battery
    • 3 x 160w solar panels
    • 3000w Projecta inverter
    • 30amp DCDC charger
    • Smart charger
    • Projecta display
    • CD player/radio
    • 28” smart tv
    • 3kg wall mounted washing machine
    • 20L microwave
