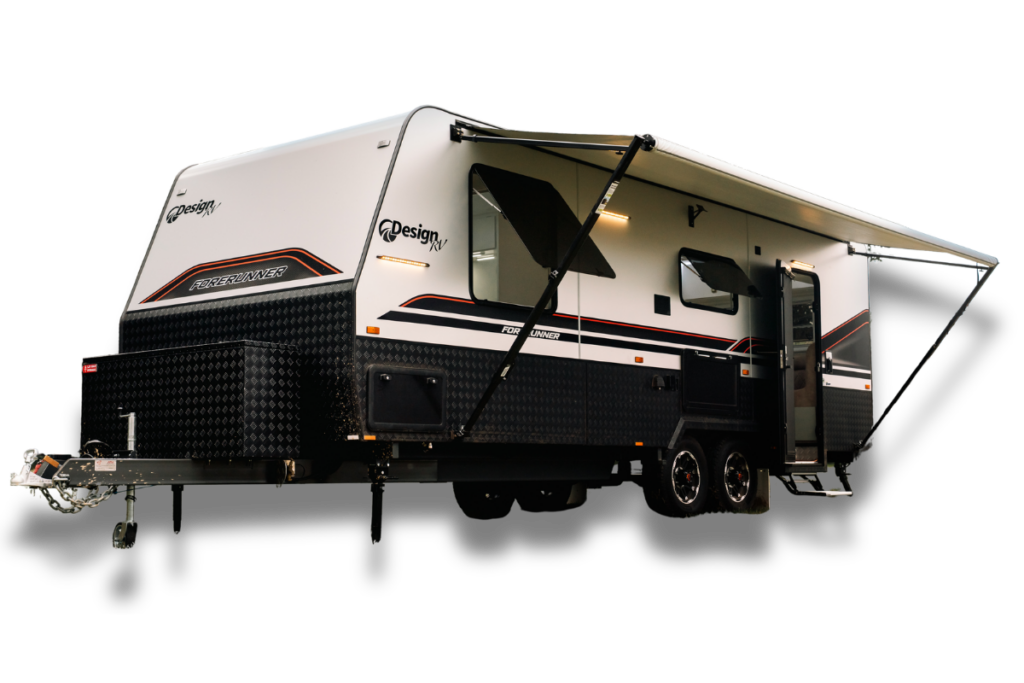

Forerunner






Taking luxury to a new level
The Forerunner range truly caters to today’s modern and adventurous traveller planning a trip of a lifetime. Boasting a high-quality finish, durable exterior and superb craftsmanship, the Forerunner by Design RV offers the best of both comfort and ruggedness. Available in a range of layouts to suit all caravanning needs this van has been designed to have a luxury finish, be equipped with a number of high end appliances and safety features.

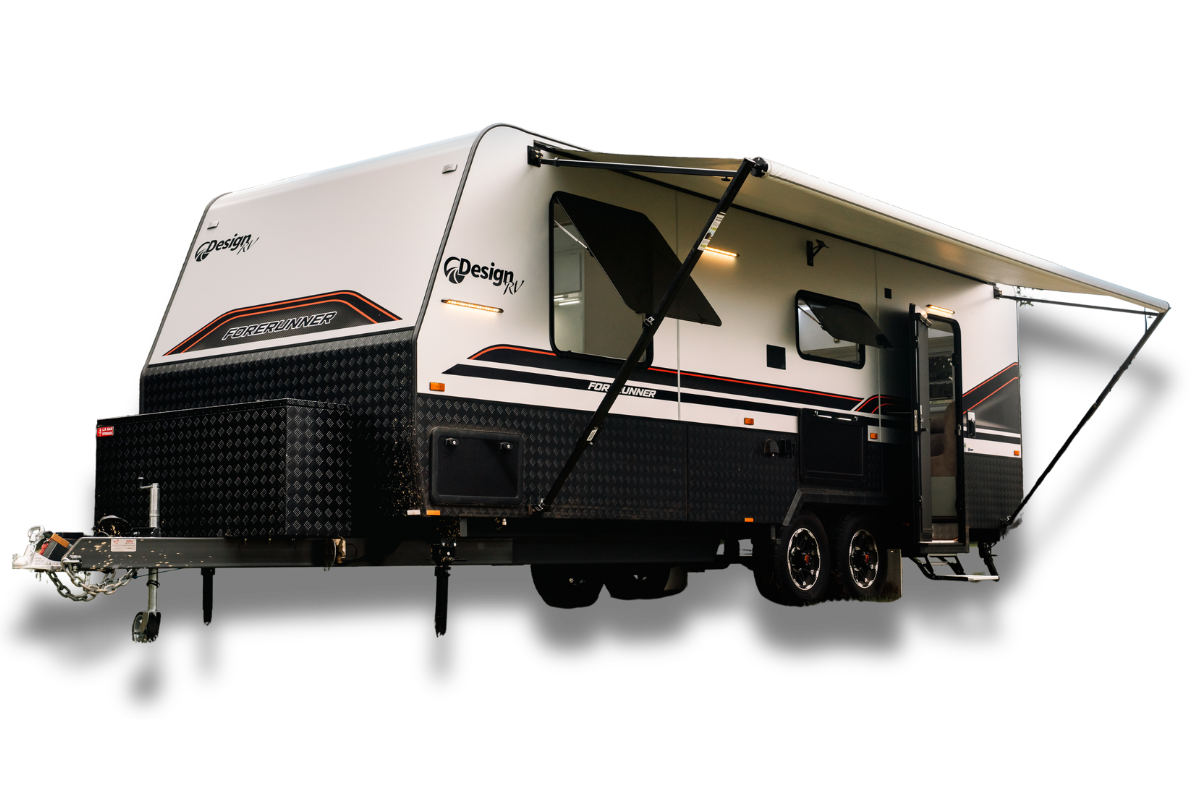

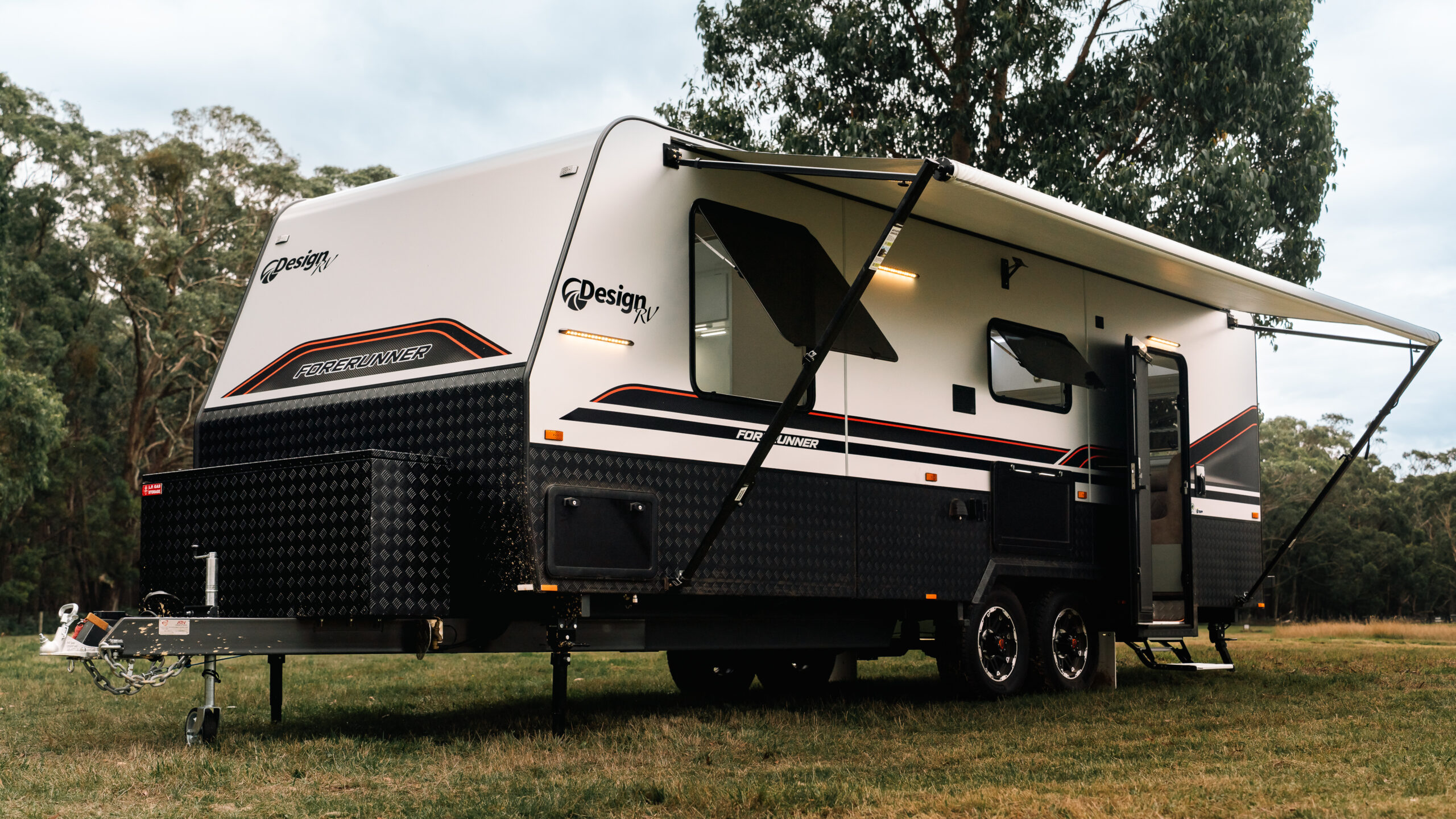

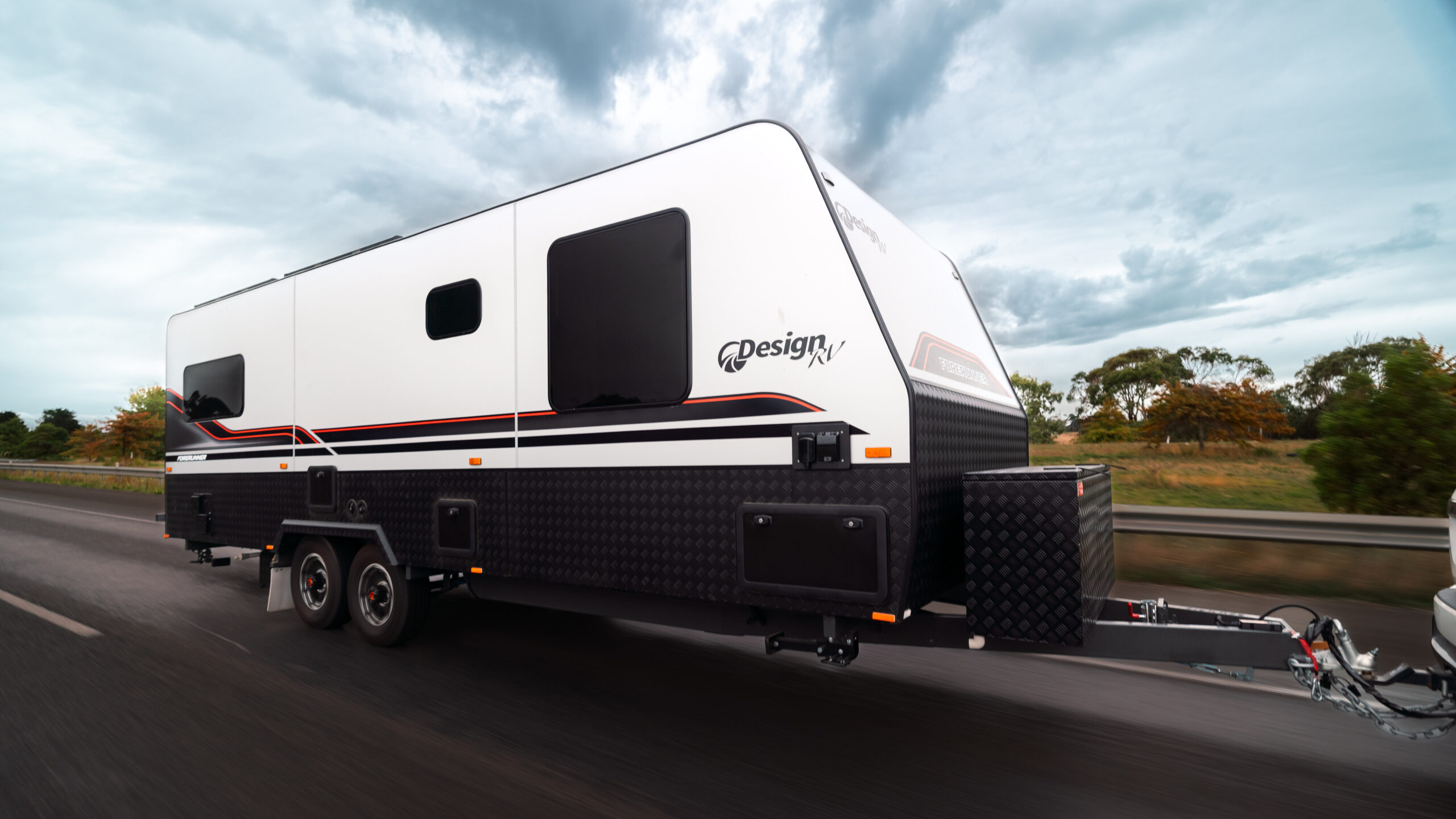

Exterior
The Forerunners aluminium cladding coupled with our distinctive decals and sleek colour coded composite paneling across the back give a luxury finish to the Foreunner that is sure to impress. External features which include; a reverse camera, solar, external lights, external speakers, picnic table, pull out step etc. – will give you the confidence you need to make the many highways and destinations of Australia your backyard.







Previous
Next





Previous
Next

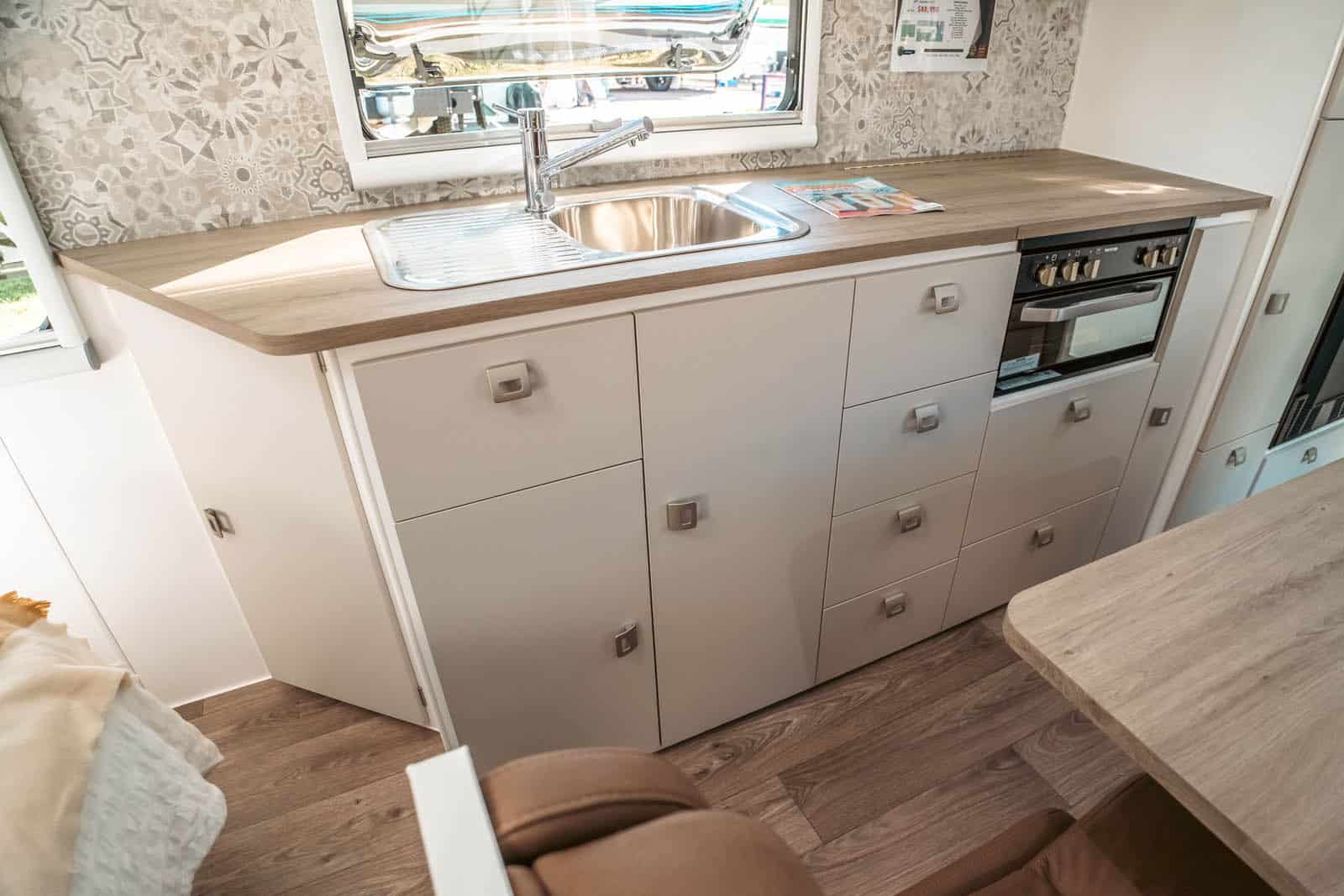

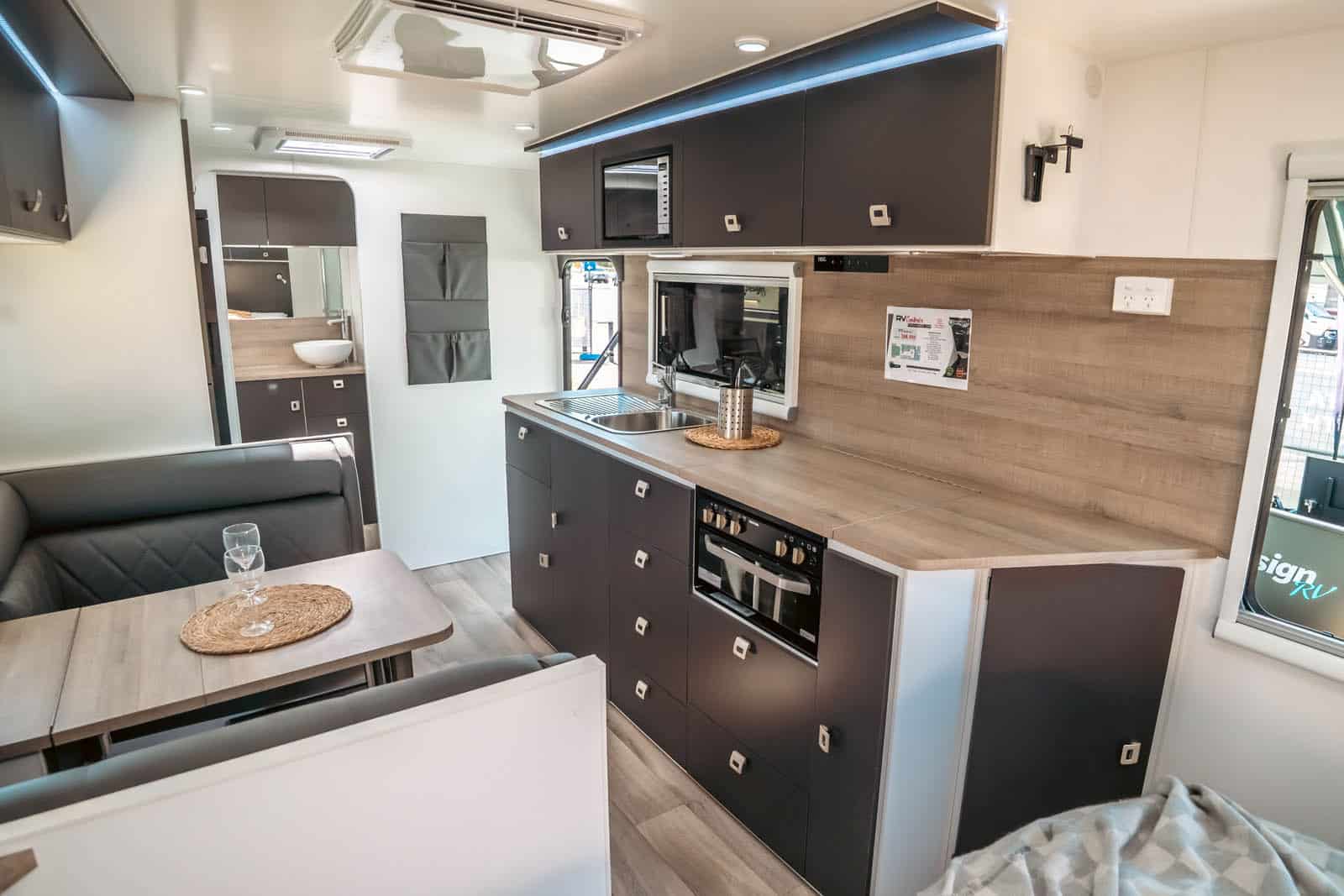

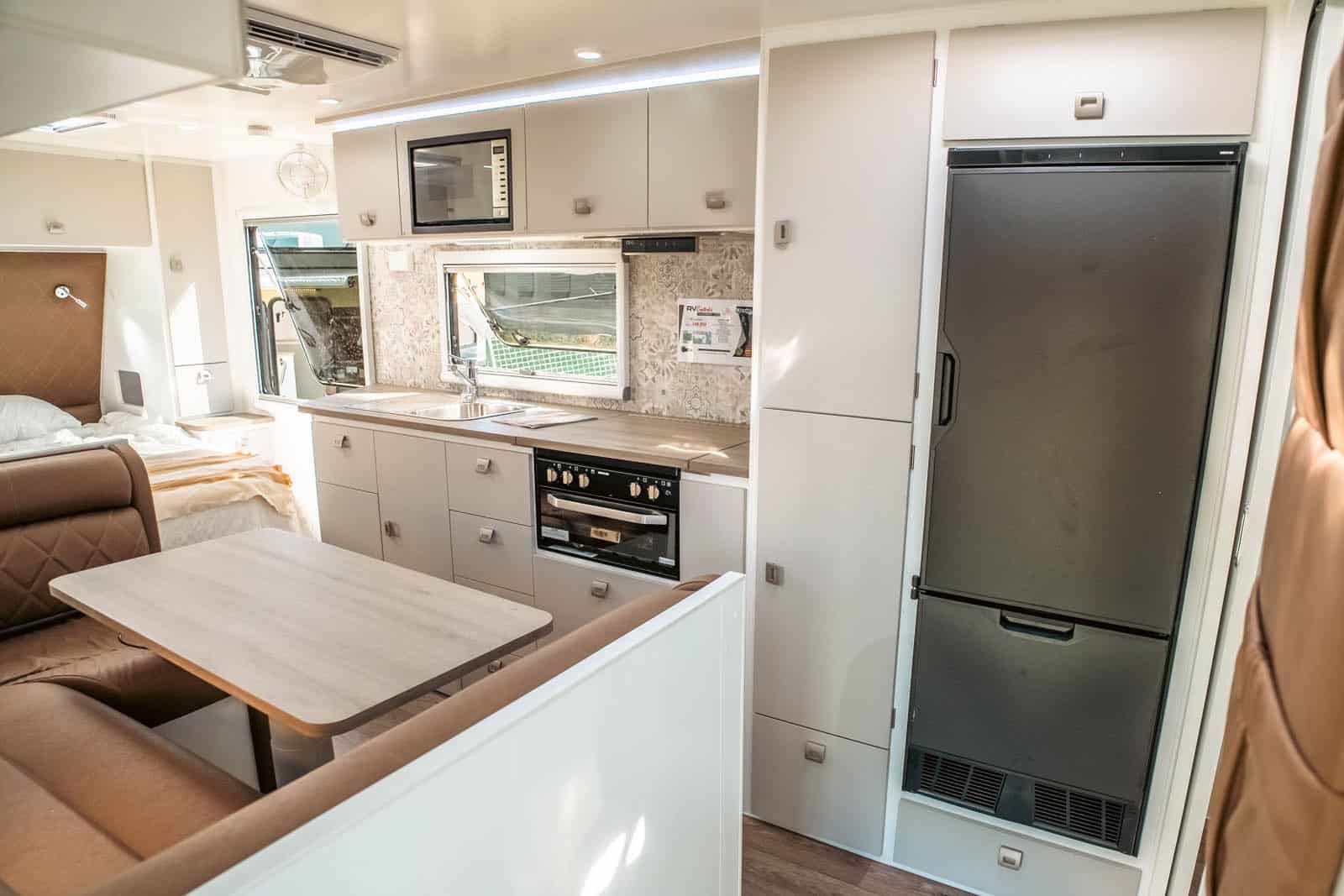

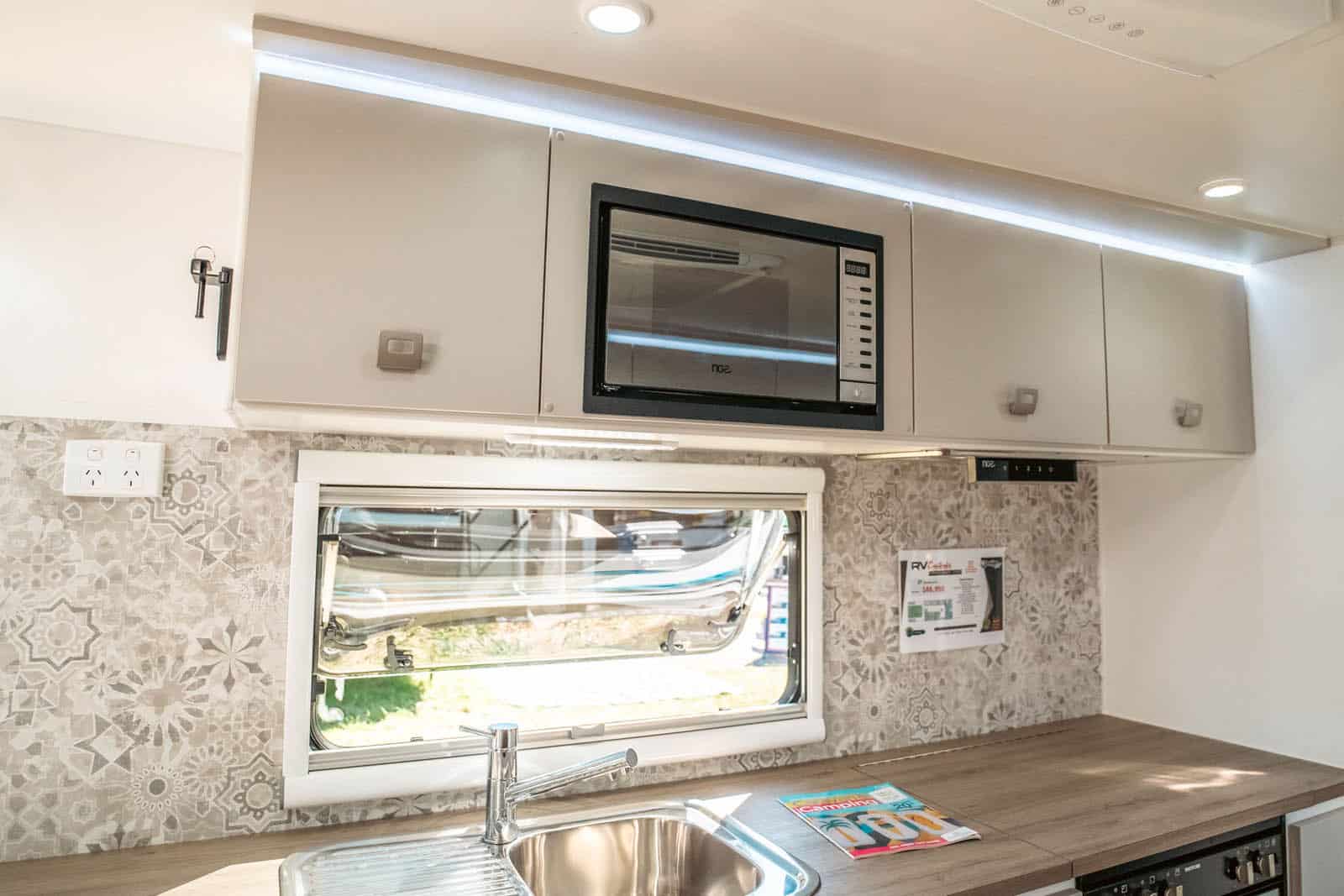

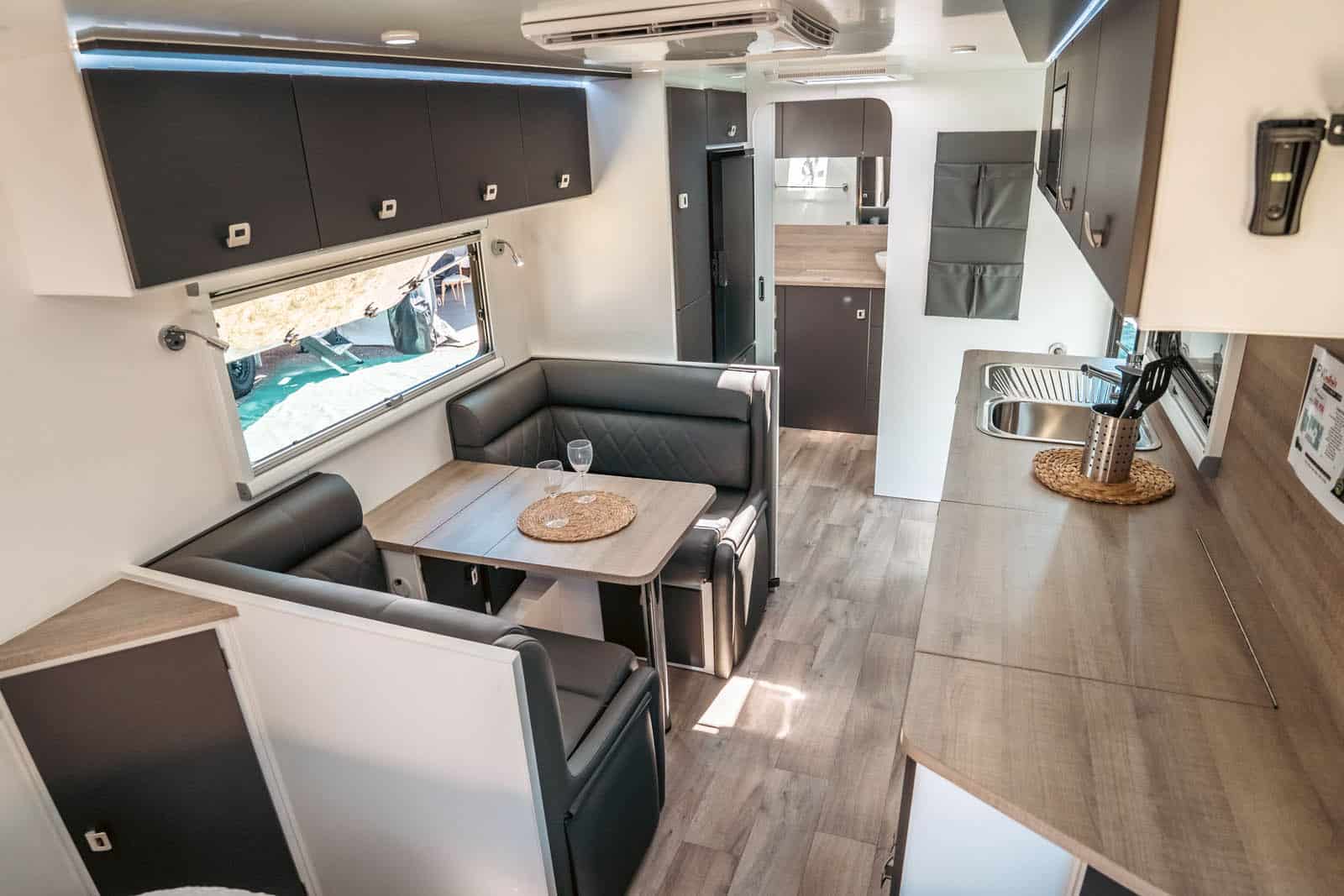

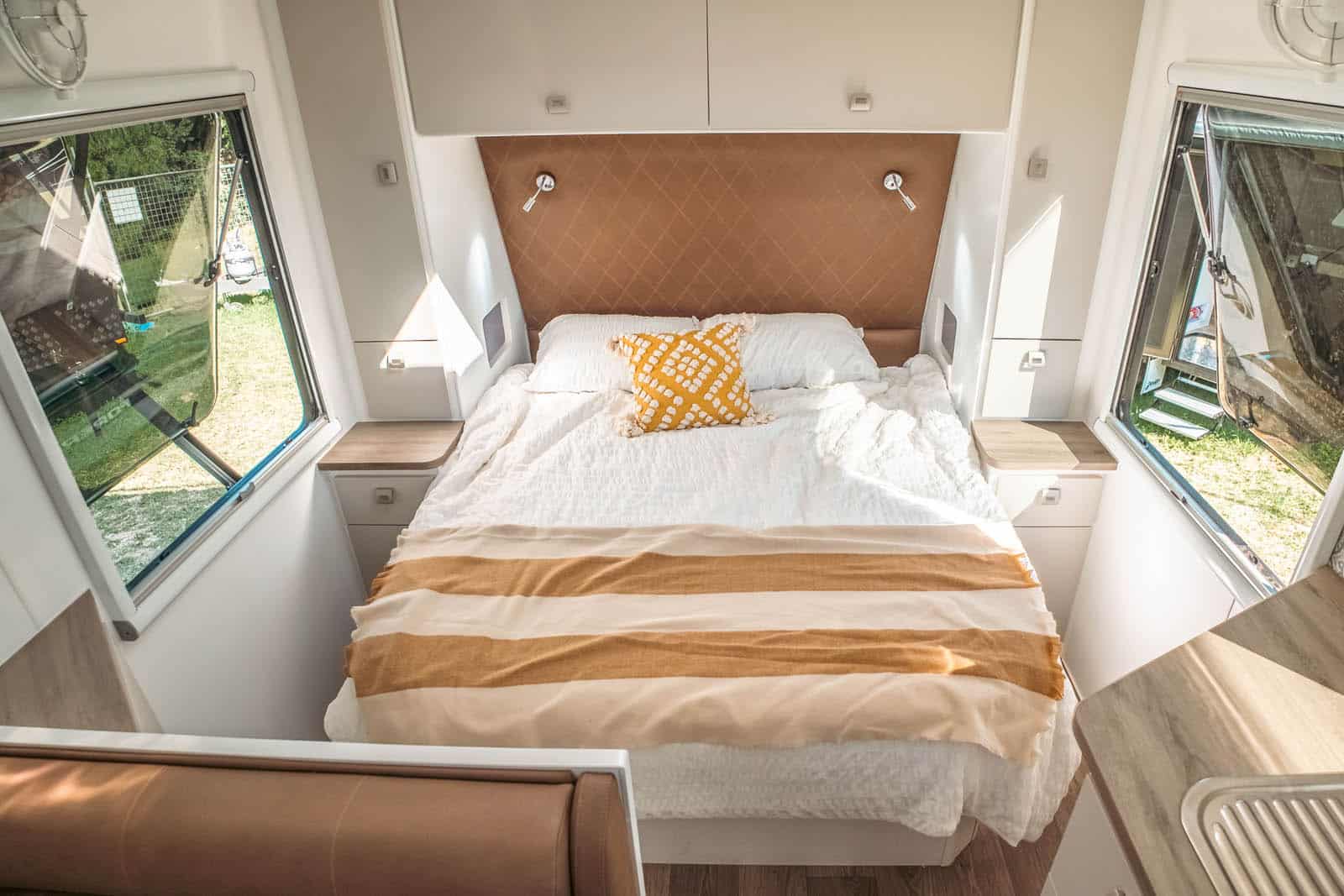

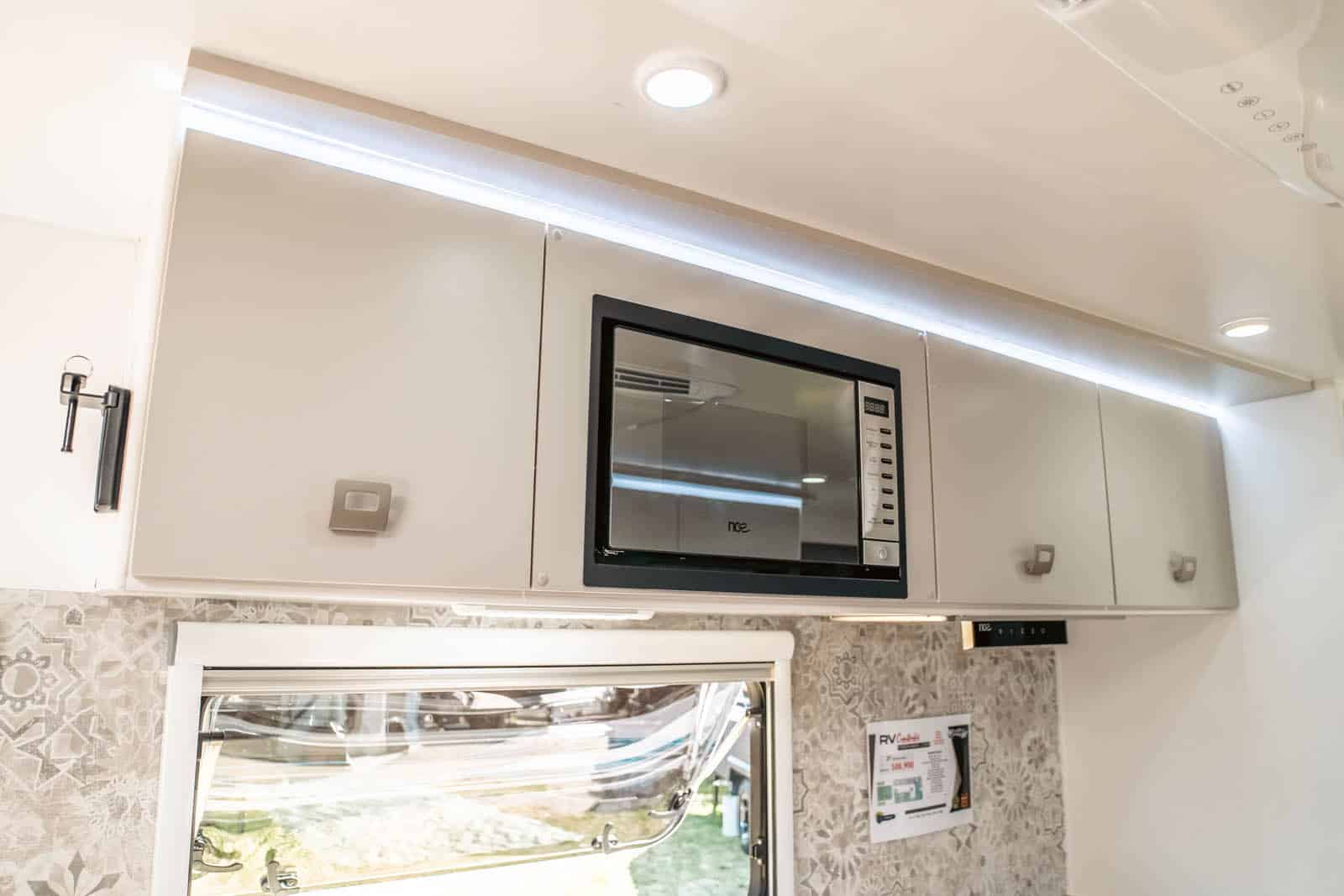

Interior
The Forerunner is your ticket to travelling Australia in style. Design RV has spent years designing and perfecting this range to bring you the most comfortable and affordable travel experience available on the market today. This modern range has been fitted with A/C, an entertainment system, TV, microwave and other high end appliances. Each caravan comes furnished with an ensuite, shower and toilet, fully equipped kitchen, and a spacious layout design.
Build Your Van
We at Design RV pride ourselves on our innovation. Our new caravan builder is no exception to this. Our state of the art builder enables you to build your dream caravan from the comfort of your own home inside and out. When you are happy with your choice speak with one of our dealers to confirm your colour choices.

Floor Plan

V1-1 Forerunner Dimensions
- Length : 18'8"
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2040
- APPROX BALL KG : 160
- TOTAL LENGTH - mm : 7520
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

V2-1 Forerunner Dimensions
- Length : 19'
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2080
- APPROX BALL KG : 245
- TOTAL LENGTH - mm : 7670
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

V3 Forerunner Dimensions
- Length : 19'6"
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2190
- APPROX BALL KG : 150
- TOTAL LENGTH - mm : 7800
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

V4 Forerunner Dimensions
- Length : 19'8
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2200
- APPROX BALL KG : 190
- TOTAL LENGTH - mm : 7850
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

V5 Forerunner Dimensions
- Length : 20'
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2285
- APPROX BALL KG : 170
- TOTAL LENGTH - mm : 7980
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

V5-1 Forerunner Dimensions
- Length : 20'6
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2290
- APPROX BALL KG : 160
- TOTAL LENGTH - mm : 7980
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

V5-2 Forerunner Dimensions
- Length : 20'6
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2295
- APPROX BALL KG : 150
- TOTAL LENGTH - mm : 7980
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

V5-3 Forerunner Dimensions
- Length : 20'6
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2295
- APPROX BALL KG : 150
- TOTAL LENGTH - mm : 7980
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

V6 Forerunner Dimensions
- Length : 21'
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2290
- APPROX BALL KG : 150
- TOTAL LENGTH - mm : 8310
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

V6-1 Forerunner Dimensions
- Length : 21'
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2290
- APPROX BALL KG : 150
- TOTAL LENGTH - mm : 8310
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

V7 Forerunner Dimensions
- Length : 21'6
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2300
- APPROX BALL KG : 185
- TOTAL LENGTH - mm : 8465
- HEIGHT - mm (inc Air-Con) : 2975
- WIDTH - mm (inc Awning) : 2450

V7-Recliner Forerunner Dimensions
- Length : 21'6
- Sleeps : 2
- APPROX TARE KG : 2300
- APPROX BALL KG : 185
- TOTAL LENGTH - mm : 8465
- HEIGHT - mm (inc Air-Con) : 2975
- WIDTH - mm (inc Awning) : 2450

V8 Forerunner Dimensions
- Length : 21'10
- Sleeps : 2 (up to 4)
- APPROX TARE KG : 2500
- APPROX BALL KG : 250
- TOTAL LENGTH - mm : 8565
- HEIGHT - mm (inc Air-Con) : 3200
- WIDTH - mm (inc Awning) : 2450

V8-Recliner Forerunner Dimensions
- Length : 21'10
- Sleeps : 2
- APPROX TARE KG : 2500
- APPROX BALL KG : 250
- TOTAL LENGTH - mm : 8565
- HEIGHT - mm (inc Air-Con) : 3200
- WIDTH - mm (inc Awning) : 2450

V9 Forerunner Dimensions
- Length : 21'10
- Sleeps : 2 (up to 3)
- APPROX TARE KG : 2450
- APPROX BALL KG : 180
- TOTAL LENGTH - mm : 8615
- HEIGHT - mm (inc Air-Con) : 2975
- WIDTH - mm (inc Awning) : 2450

V10 Forerunner Dimensions
- Length : 22'10
- Sleeps : 2 (up to 4)
- APPROX TARE KG : 2480
- APPROX BALL KG : 280
- TOTAL LENGTH - mm : 8920
- HEIGHT - mm (inc Air-Con) : 2975
- WIDTH - mm (inc Awning) : 2450

F2 Forerunner Dimensions
- Length : 21'
- Sleeps : 4 (up to 6)
- APPROX TARE KG : 2250
- APPROX BALL KG : 170
- TOTAL LENGTH - mm : 8320
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

F2-5 Forerunner Dimensions
- Length : 21'10
- Sleeps : 4 (up to 6)
- APPROX TARE KG : 2410
- APPROX BALL KG : 160
- TOTAL LENGTH - mm : 8620
- HEIGHT - mm (inc Air-Con) : 2975
- WIDTH - mm (inc Awning) : 2450

F2-6 Forerunner Dimensions
- Length : 21'10
- Sleeps : 4 (up to 6)
- APPROX TARE KG : 2460
- APPROX BALL KG : 195
- TOTAL LENGTH - mm : 8620
- HEIGHT - mm (inc Air-Con) : 2975
- WIDTH - mm (inc Awning) : 2450

F4 Forerunner Dimensions
- Length : 24'8"
- Sleeps : 6
- APPROX TARE KG : Contact Dealer
- APPROX BALL KG : Contact Dealer
- TOTAL LENGTH - mm : 9430
- HEIGHT - mm (inc Air-Con) : 2975
- WIDTH - mm (inc Awning) : 2450
Technical Specifications
Chassis
• Supagal Australian Made Chassis
• 4” Heavy Duty Chassis up to 21’6 models
• 6” Heavy Duty Chassis above 21’6 models
• 2” Chassis Raiser on 4” chassis only
• 205/70/R15 Light Truck Tyres & 15”
• Alloy Wheels up to 21’6 models
• 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
• 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
• 8” Jockey Wheel
• Wind Up Jack and Wheel Brace
• 50mm Ball Coupling
• Heavy Duty 3 Arm Bumper
• Spare Wheel Fitted to Bumper Bar
• Lockable Coupling with Twin Safety Chains
• 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
• Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
• A-Frame Tap with Protection
• Drop Down Stabilizer Jack Legs
• Break-Away Safety System
• Galvanised Wheel Arches
• Water Tank Galvanised
• Stoneguard Protection
• Leaf Spring Suspension
• Mesh Rack on A-Frame
• Large Jockey Wheel Clamp
• 4” Heavy Duty Chassis up to 21’6 models
• 6” Heavy Duty Chassis above 21’6 models
• 2” Chassis Raiser on 4” chassis only
• 205/70/R15 Light Truck Tyres & 15”
• Alloy Wheels up to 21’6 models
• 235/75/R15 All Terrain Tyres & 15” Alloy Wheels above 21’6 models
• 245/75/R16 All Terrain Tyres & 16” Alloy Wheels (Design 1-1 only)
• 8” Jockey Wheel
• Wind Up Jack and Wheel Brace
• 50mm Ball Coupling
• Heavy Duty 3 Arm Bumper
• Spare Wheel Fitted to Bumper Bar
• Lockable Coupling with Twin Safety Chains
• 10” Electric Brakes to All Wheels Except Design 1-1 uses 12” Brakes
• Straight Hollow Axles except Design 1-1 use solid 2.5T Beam Axle
• A-Frame Tap with Protection
• Drop Down Stabilizer Jack Legs
• Break-Away Safety System
• Galvanised Wheel Arches
• Water Tank Galvanised
• Stoneguard Protection
• Leaf Spring Suspension
• Mesh Rack on A-Frame
• Large Jockey Wheel Clamp
EXTERIOR
• Fully Insulated Roof and Walls with Meranti Timber Frame (Gold Batt Fibreglass to Roof and Styrofoam to Walls)
• Quality Roll Out Awning
• Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
• Black External Trim
• Front Window with Protector Shade (included in Design 8 only)
• Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
• Checker-Plate Front, Sides & Rear (600mm High)
• Aluminium Composite Gloss Cladding, front, rear and sides
• Security Mesh Locking Door 2 Radius Cnr Main Door
• 2 x Mini Roof Skylights with Blind & Flyscreen 1 in bedroom + 1 in Lounge
• Quality Metal Grab Handles to Each Corner of Van
• External Large Fold Down Picnic Table
• Fully Galvanised Lined Generator Compartment (Layout dependant)
• Checkerplate Door Entry Surround
• Wheel Spats
• Quality Roll Out Awning
• Double Glazed Push Out European Style Windows & Integrated Blinds with ‘Midge Proof’ Flyscreens
• Black External Trim
• Front Window with Protector Shade (included in Design 8 only)
• Fully Galvanized Lined Front Tunnel Boot with Large Access Doors to Both Sides
• Checker-Plate Front, Sides & Rear (600mm High)
• Aluminium Composite Gloss Cladding, front, rear and sides
• Security Mesh Locking Door 2 Radius Cnr Main Door
• 2 x Mini Roof Skylights with Blind & Flyscreen 1 in bedroom + 1 in Lounge
• Quality Metal Grab Handles to Each Corner of Van
• External Large Fold Down Picnic Table
• Fully Galvanised Lined Generator Compartment (Layout dependant)
• Checkerplate Door Entry Surround
• Wheel Spats
INTERIOR
• Premium Vinyl Flooring
• Smoke Detector
• Fire Extinguisher
• One Piece Plywood Floor
• Lift Up Under Bed Storage (Not standard on Single Bed models)
• Recessed Cook Top with Laminex Lid Over Stove
• Square Edge Benchtops
• Plastic Cutlery Drawer Insert
• Innerspring Mattress – Queen or Single Beds
• Internal Roof Height of 6’6”
• Large Mirror in Ensuite
• Large Stylish Grab Handle on Entry Wall at Door (Where available)
• Stylish Positive Locking European Door Latches with Soft Open Gas Struts
• Smooth Glide Drawers on Metal Runners
• Plush Upholstery with Side Swabs to Dinette
• Separate Shower & Toilet Ensuite with Glass Door Shower
• Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
• Full Laminate Splashback & Benchtops
• 2 x Single Towel Rails and Toilet Roll Holder

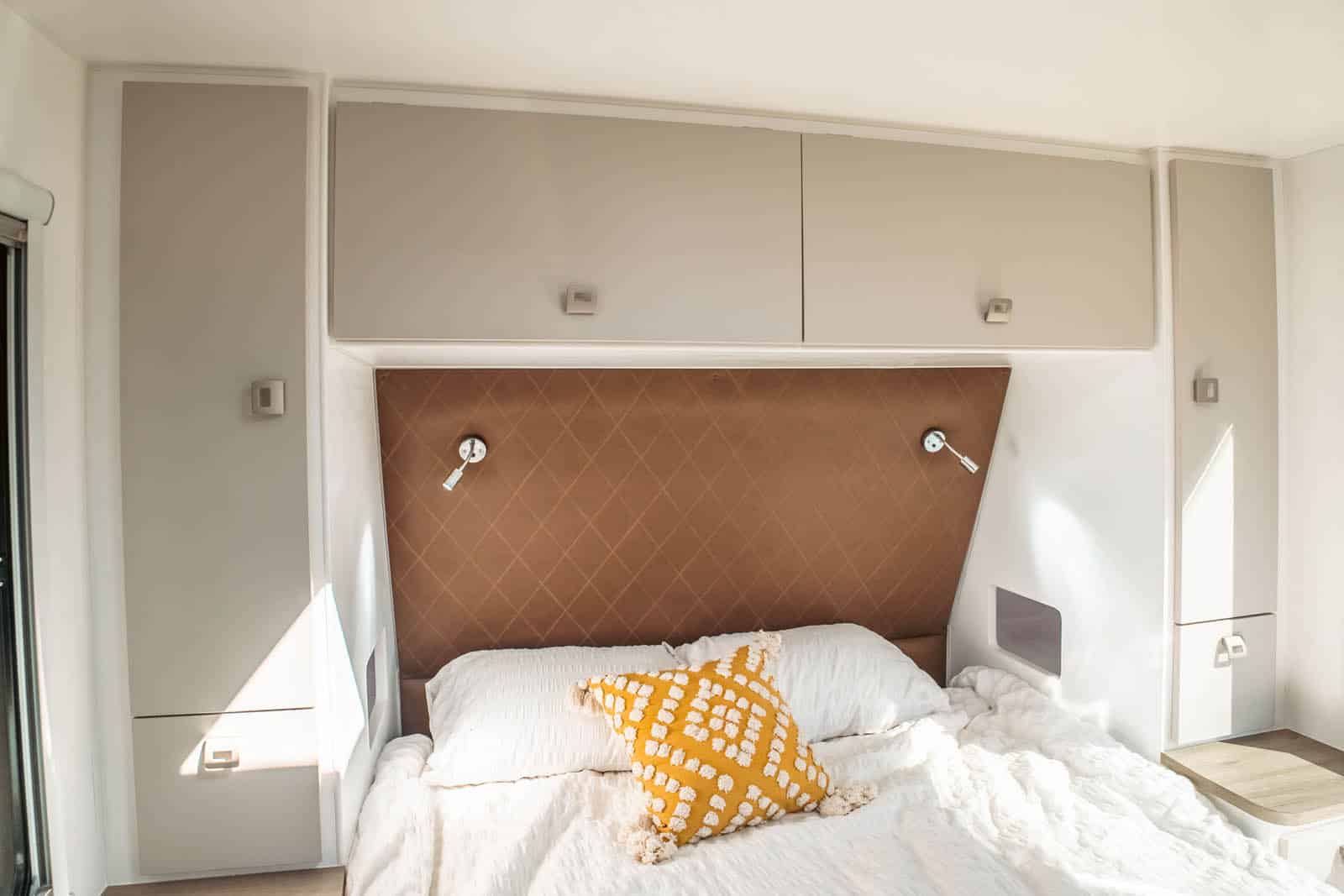

• Bed Head Padding

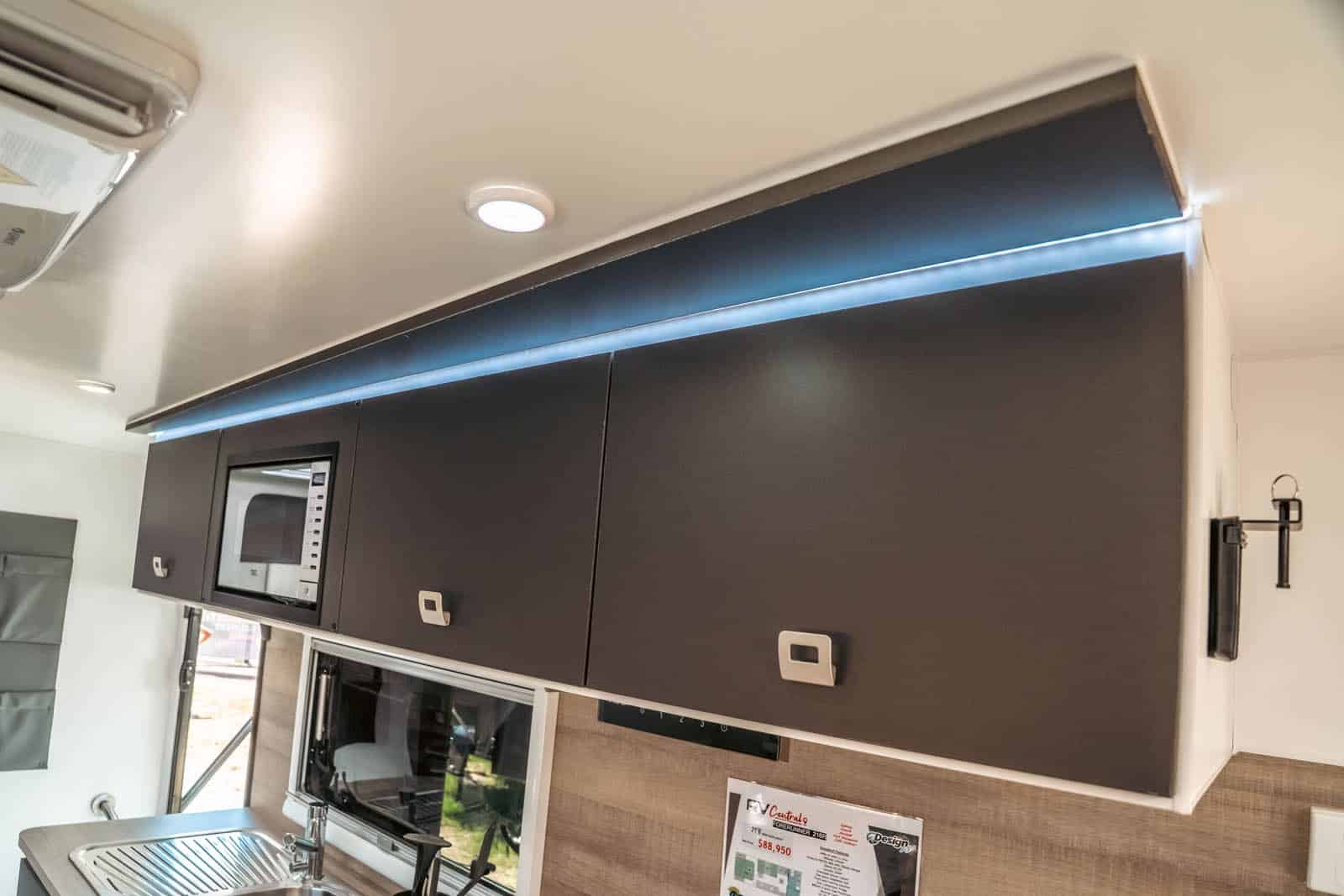

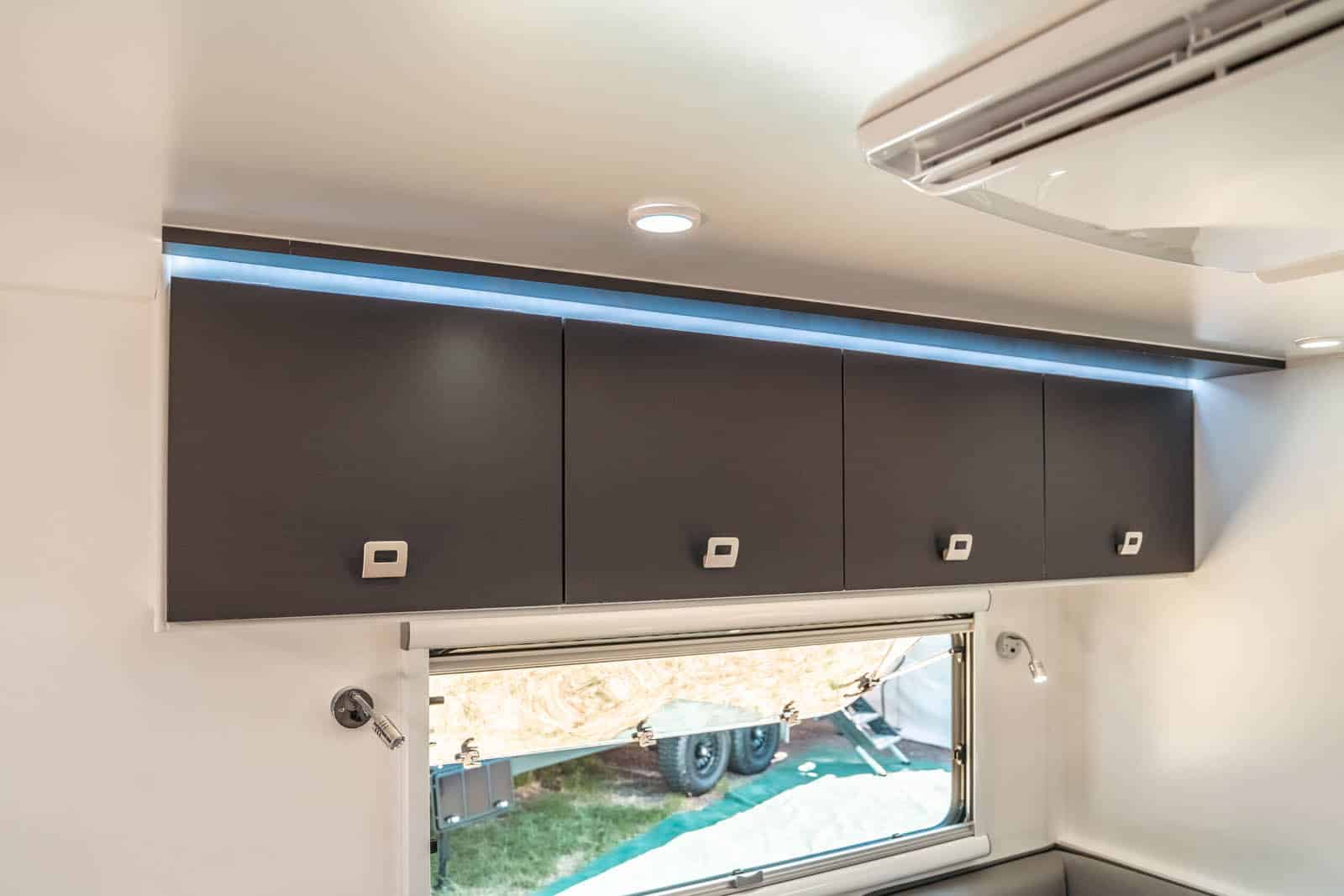

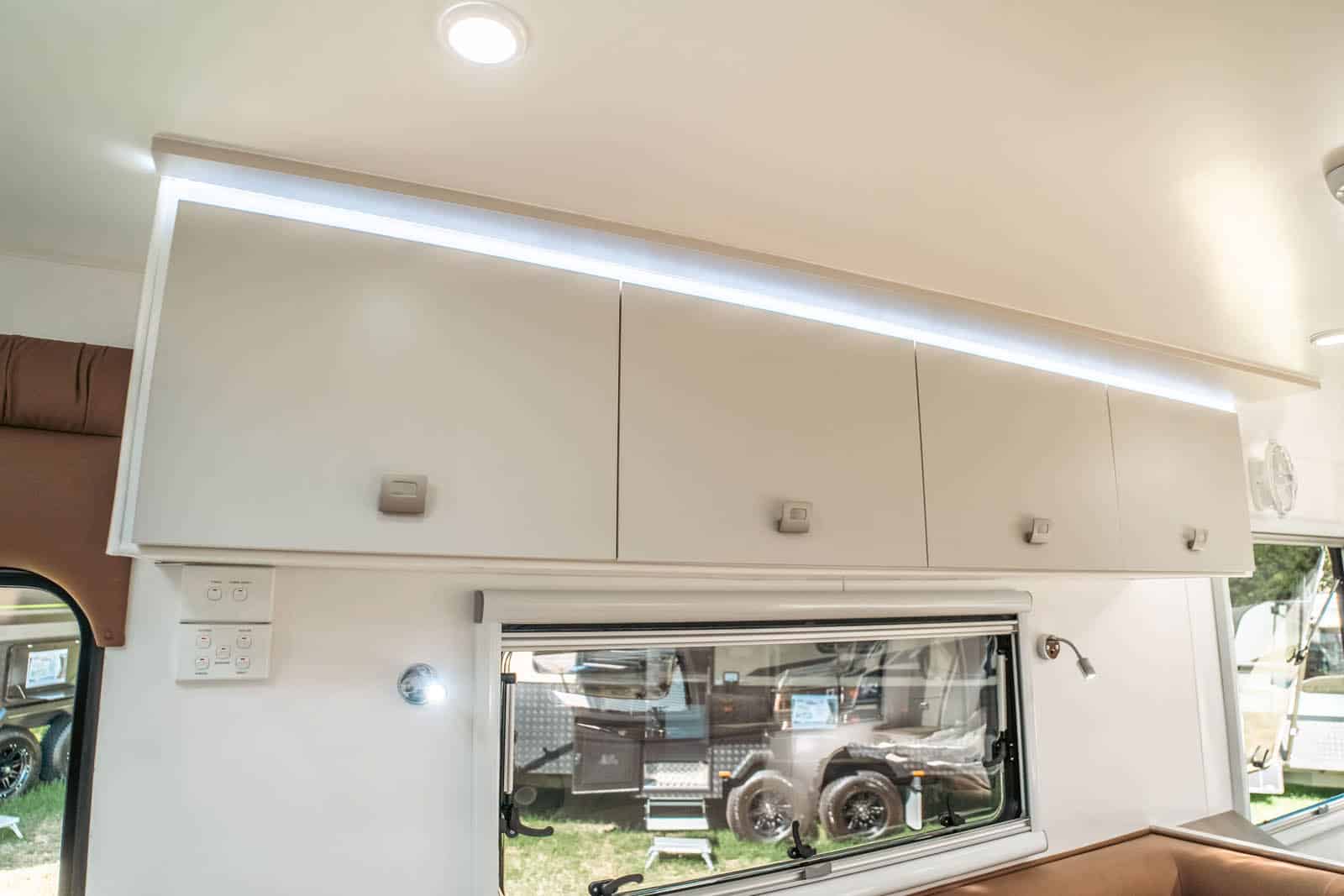

• Bulk Heads with LED strip Lighting
• Kitchen/Lounge area only
• Wardrobe Cutouts with 240V and USB Sockets
• Smoke Detector
• Fire Extinguisher
• One Piece Plywood Floor
• Lift Up Under Bed Storage (Not standard on Single Bed models)
• Recessed Cook Top with Laminex Lid Over Stove
• Square Edge Benchtops
• Plastic Cutlery Drawer Insert
• Innerspring Mattress – Queen or Single Beds
• Internal Roof Height of 6’6”
• Large Mirror in Ensuite
• Large Stylish Grab Handle on Entry Wall at Door (Where available)
• Stylish Positive Locking European Door Latches with Soft Open Gas Struts
• Smooth Glide Drawers on Metal Runners
• Plush Upholstery with Side Swabs to Dinette
• Separate Shower & Toilet Ensuite with Glass Door Shower
• Full Height Linen Cupboard in Ensuite with single drawer above External Generator Compartment (except Design 2-1, Design 10, and family layouts)
• Full Laminate Splashback & Benchtops
• 2 x Single Towel Rails and Toilet Roll Holder
• Bed Head Padding
• Bulk Heads with LED strip Lighting
• Kitchen/Lounge area only
• Wardrobe Cutouts with 240V and USB Sockets
Plumbing
• Flick Mixer Taps – Kitchen and En-suite
• Mains Pressure Water Inlet
• Waste Water Outlet
• 2 x Lockable Water Tank Inlet
• 2 X Up to 95L Water Tanks
• 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
• 12V Water Pump
• Large Deep Bowl Stainless Kitchen Sink with Drainer
• A-Frame Mains Pressure Tap
• External Gas Bayonet near Front Tunnel Boot
• Digital Water Tank Gauges
• China Vanity to En-suite
• Filtered Water Tap at Kitchen Sink
• Mains Pressure Water Inlet
• Waste Water Outlet
• 2 x Lockable Water Tank Inlet
• 2 X Up to 95L Water Tanks
• 2 x 9Kg Gas Bottles with Changeover Selector Tap and Gas Regulator
• 12V Water Pump
• Large Deep Bowl Stainless Kitchen Sink with Drainer
• A-Frame Mains Pressure Tap
• External Gas Bayonet near Front Tunnel Boot
• Digital Water Tank Gauges
• China Vanity to En-suite
• Filtered Water Tap at Kitchen Sink
Electrical
• LED External Lights
• 1 x LED External Annexe Light
• LED Lighting – Roof, Kitchen, Ensuite
• 2 x LED Reading Lights in Bedroom
• 2 x LED Reading Lights in Lounge
• Smart Charger – Battery Pack incl 100Amp DC Battery
• 1 x 190w Solar Panel and 30Amp regulator
• Roof Top Digital Amplified TV Antenna
• 24” Flatscreen TV/DVD combo on Wall
• Mounted Bracket
• CD/Radio Player
• 2 x Internal Roof Speakers
• 2 x External Marine Speakers
• 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
• 3 x Gas & 1 x 240V Hotplates with Mini Grill
• Microwave Oven
• Gas/Electric Hot Water System
• IBIS Air Command MK4 Reverse Cycle
• A/C or equivalent A/C
• 12V Rangehood
• Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
• Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
• 240V 15Amp Inlet & 240V 10Amp Outlet
• Circuit Breaker & Earth Leakage
• Reversing Camera and Car Monitor Kit
• 12V/USB Socket at Kitchen Table and Outside Table
• TV Coaxial Point at Outside Table
• LED Entry Light and Grab Handle
• 12V Fan Hatch to Shower & Toilet
• Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)
• Porcelain Bowl Toilet
• 50Amp Anderson Plug
• Portable Solar Charge Point
• 1 x LED External Annexe Light
• LED Lighting – Roof, Kitchen, Ensuite
• 2 x LED Reading Lights in Bedroom
• 2 x LED Reading Lights in Lounge
• Smart Charger – Battery Pack incl 100Amp DC Battery
• 1 x 190w Solar Panel and 30Amp regulator
• Roof Top Digital Amplified TV Antenna
• 24” Flatscreen TV/DVD combo on Wall
• Mounted Bracket
• CD/Radio Player
• 2 x Internal Roof Speakers
• 2 x External Marine Speakers
• 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
• 3 x Gas & 1 x 240V Hotplates with Mini Grill
• Microwave Oven
• Gas/Electric Hot Water System
• IBIS Air Command MK4 Reverse Cycle
• A/C or equivalent A/C
• 12V Rangehood
• Design 8 fitted with 12 volt compressor fridge • 3 Way GAS/ELEC. Fridge with Separate Freezer. Tropical Rated and Vented through Roof. Fridge size supplied Separate 2 door 190L
• Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge, 1 x Ensuite)
• 240V 15Amp Inlet & 240V 10Amp Outlet
• Circuit Breaker & Earth Leakage
• Reversing Camera and Car Monitor Kit
• 12V/USB Socket at Kitchen Table and Outside Table
• TV Coaxial Point at Outside Table
• LED Entry Light and Grab Handle
• 12V Fan Hatch to Shower & Toilet
• Top Load Washing Machine (Except family layouts, Optional front load W/M only) (Design 9 & 10 fitted with front loading WM)
• Porcelain Bowl Toilet
• 50Amp Anderson Plug
• Portable Solar Charge Point
