STRYKER






Go that much further
The compact and robust Stryker caravan by Design RV is a compact well equipped single axle caravan that is designed for travelling couples and singles alike. See all that Australia has to offer by getting to the hard to reach destinations through the agility of the Stryker. The Stryker has been designed for the explorer who is looking to head off the beaten track into Australia’s ever changing landscape in comfort.
Exterior
The colour coded exterior of the Stryker is impressive from every angle. The alucomp smooth cladding along with the bespoke decals give this van a rugged and contemporary appearance. External speakers, double step, raised chassis, external lights and nudge bars are all standard features of the Stryker. Tackle the corrugations easily and discover the wondrous National Parks and scenic locations that Australia has to offer.



Previous
Next







Previous
Next
Interior

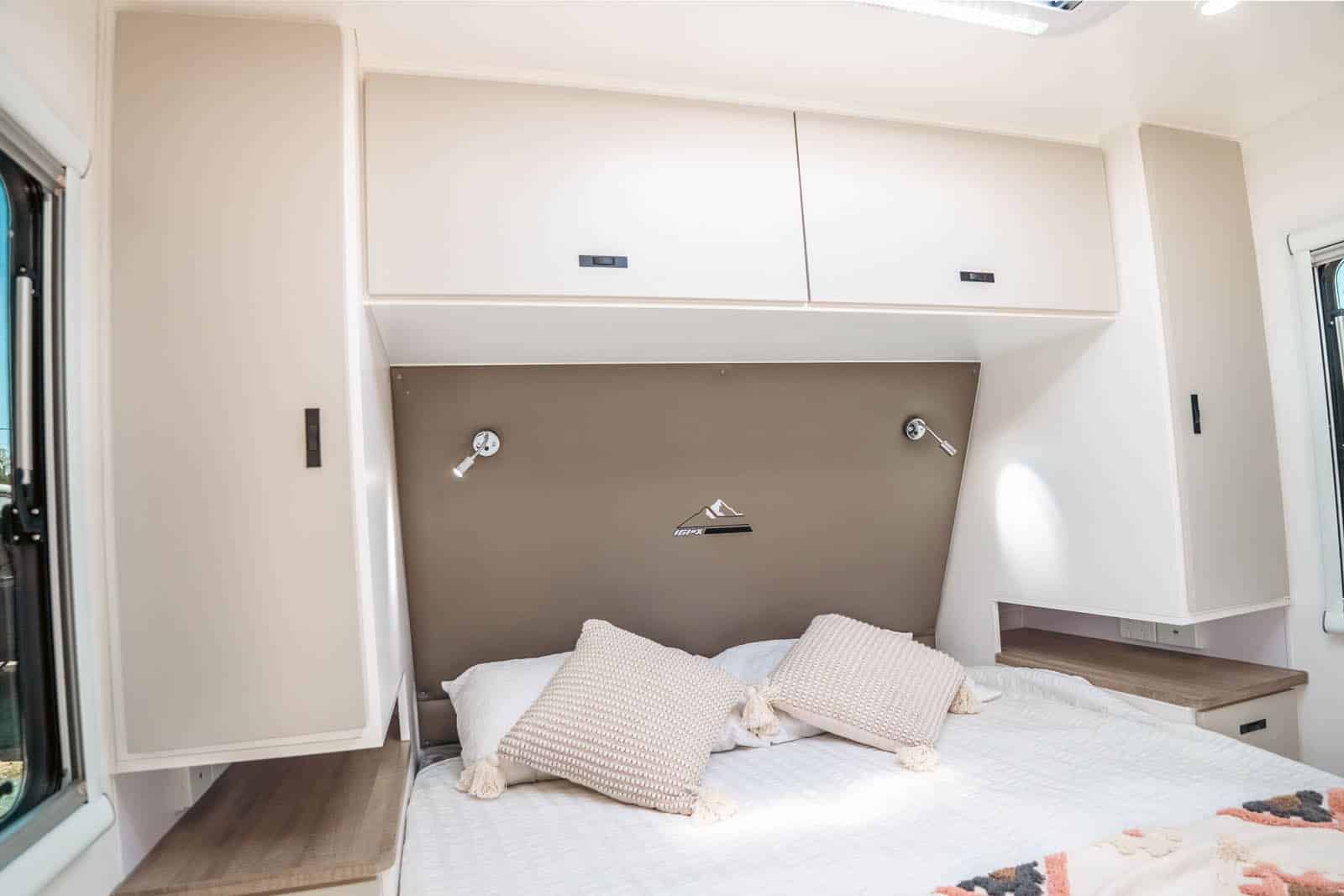

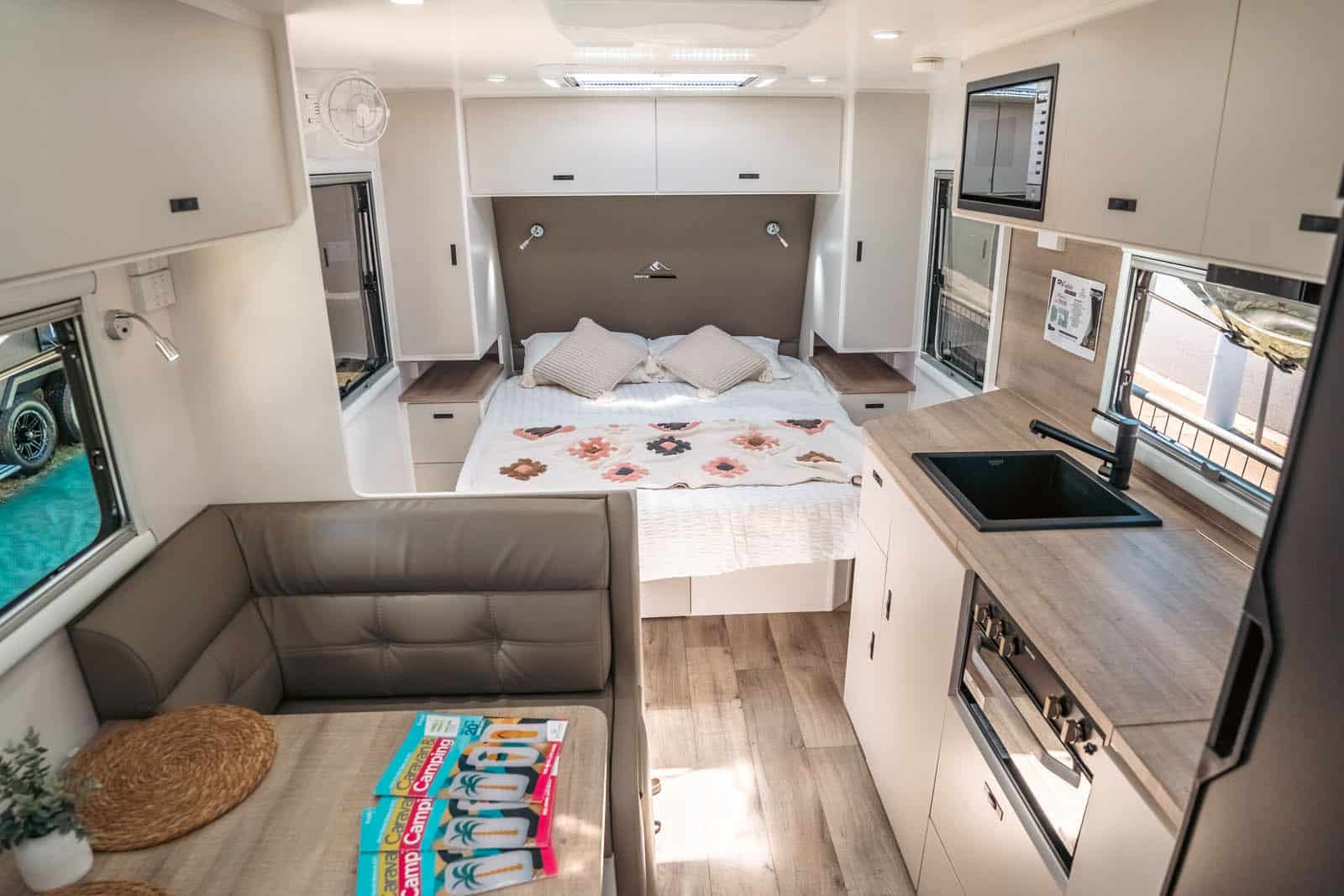

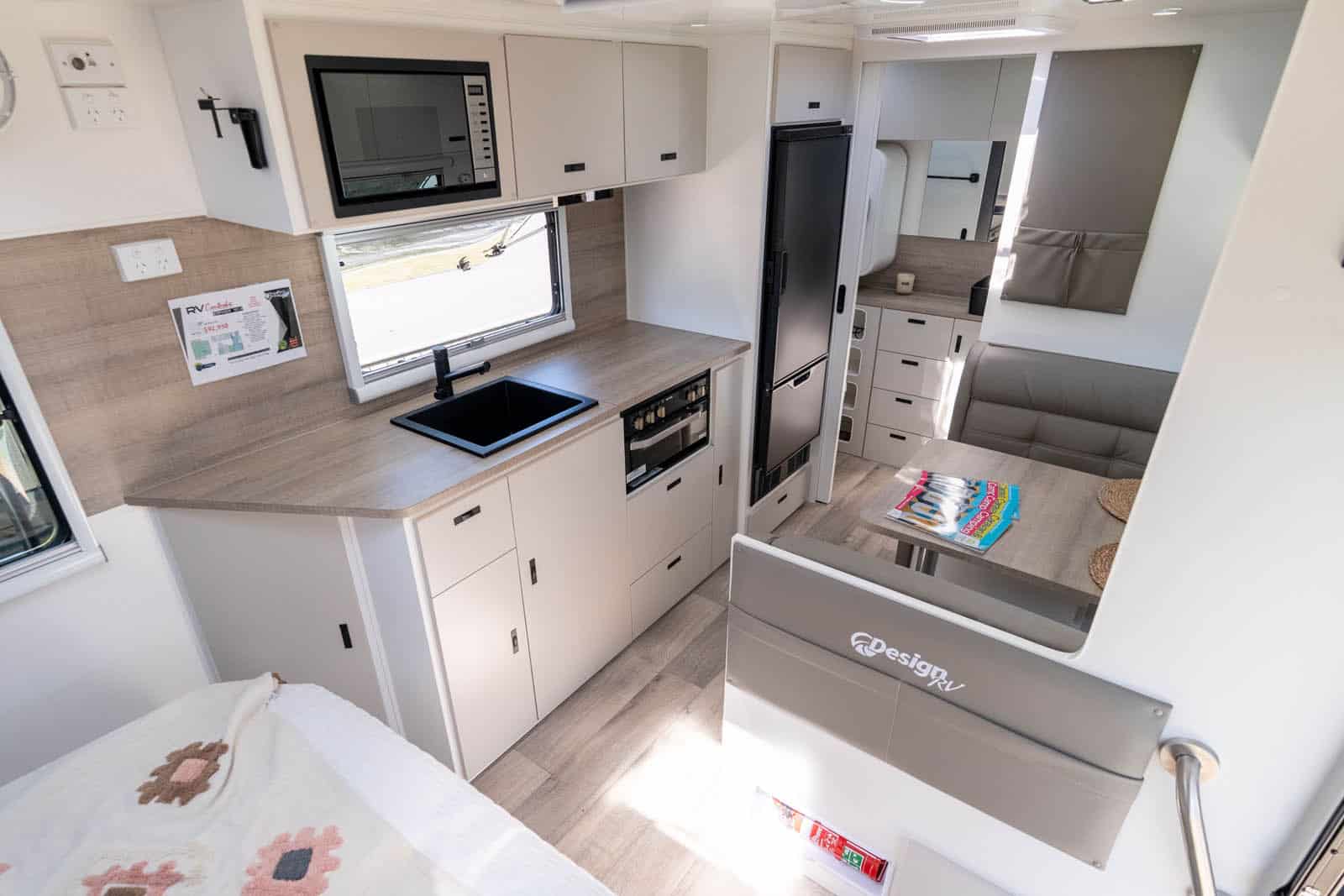

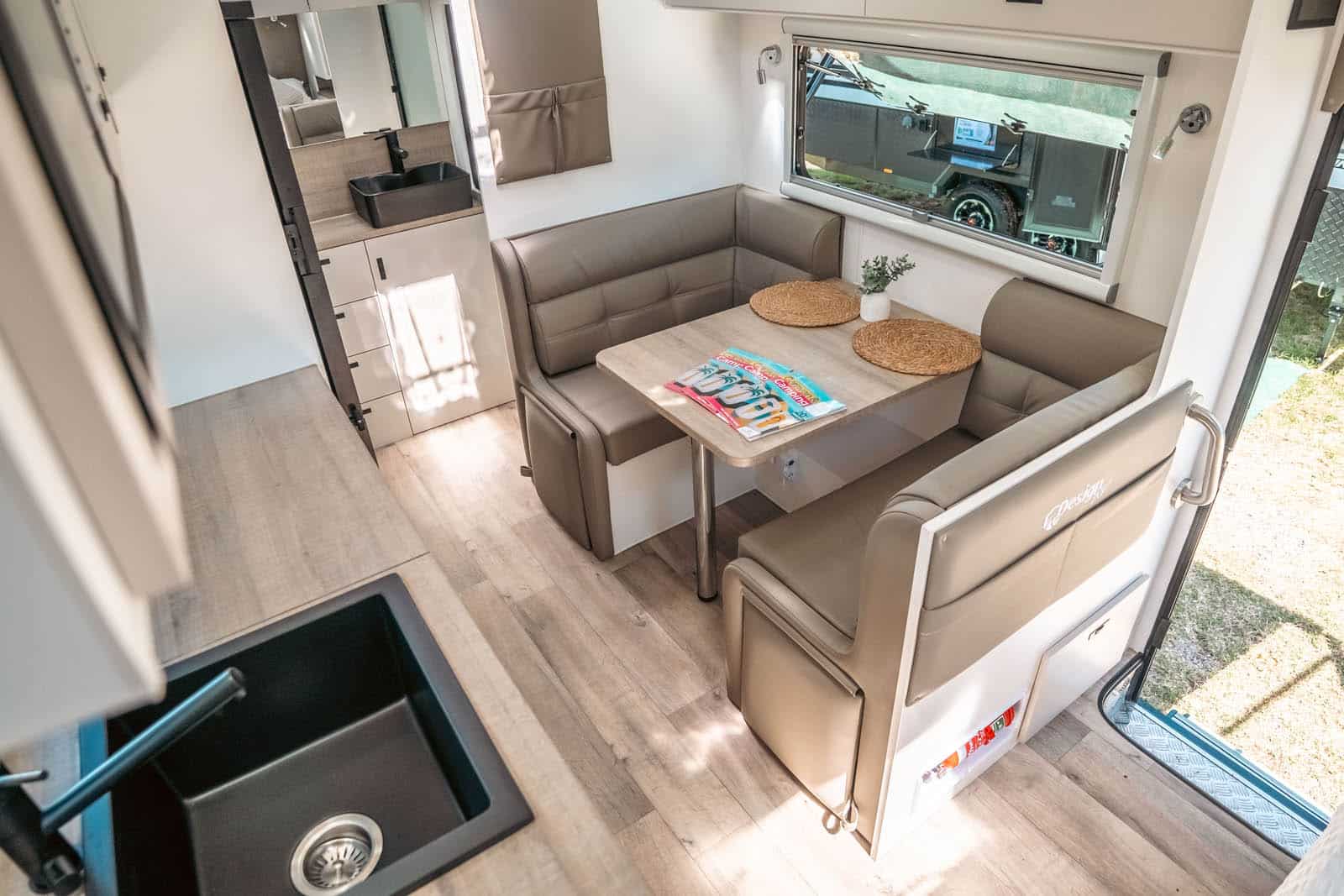

The impressive Stryker is a compact caravan that packs quite a spacious interior. Fitted with a queen bed, café Dinette configuration & full ensuite. Being an adventurous traveller doesn’t mean you can’t take the luxuries of home with you. The Stryker is fitted with reverse cycle A/C, microwave, cooktop, reading lights and premium tapware and accessories. Don’t forget the entertainment system and TV setup for the cold nights in the wild. Travel in style, safety and luxury with the all new Stryker range.
Build Your Van
We at Design RV pride ourselves on our innovation. Our new caravan builder is no exception to this. Our state of the art builder enables you to build your dream caravan from the comfort of your own home inside and out. When you are happy with your choice speak with one of our dealers to confirm your colour choices.

Floor Plan

161-T Stryker Dimensions
- Length : 17'
- Sleeps : 2 (up to 3)
- APPROX TARE KG : Contact Dealer
- APPROX BALL KG : Contact Dealer
- TOTAL LENGTH - mm : 7130
- HEIGHT - mm (inc Air-Con) : 2950
- WIDTH - mm (inc Awning) : 2450

161-X Stryker Dimensions
- Length : 17'
- Sleeps : 2 (up to 3)
- APPROX TARE KG : Contact Dealer
- APPROX BALL KG : Contact Dealer
- TOTAL LENGTH - mm : 7680
- HEIGHT - mm (inc Air-Con) : 3100
- WIDTH - mm (inc Awning) : 2450
Technical Specifications
Chassis
- 4” Heavy Duty Chassis, 6” Heavy Duty Chassis on Chassis over 21’6
- 4” A-Frame Return to Spring Hangers, 6” A-Frame Return to Spring Hangers on chassis over 21’6
- 2” Chassis Raiser on 4” chassis only
- 205/70/R15 Light Truck & 15” Alloy Wheels. 235/75R15 All Terrains on Chassis over 21’6
- 8” Jockey Wheel
- Wind Up Jack
- 50mm Ball Coupling
EXTERIOR
• Fully Insulated Roof and Walls with Meranti Timber Frame
• Quality BLACK Roll Out Awning
• Double Glazed Push Out Windows with Integrated Blinds
• Galvanized Front Tunnel Boot with Large Access Doors
• Checker Plate front, rear, and sides
• Black External Trim
• Aluminium Composite exterior cladding
• Security Mesh Locking Door 2 Radius Cnr Main Door

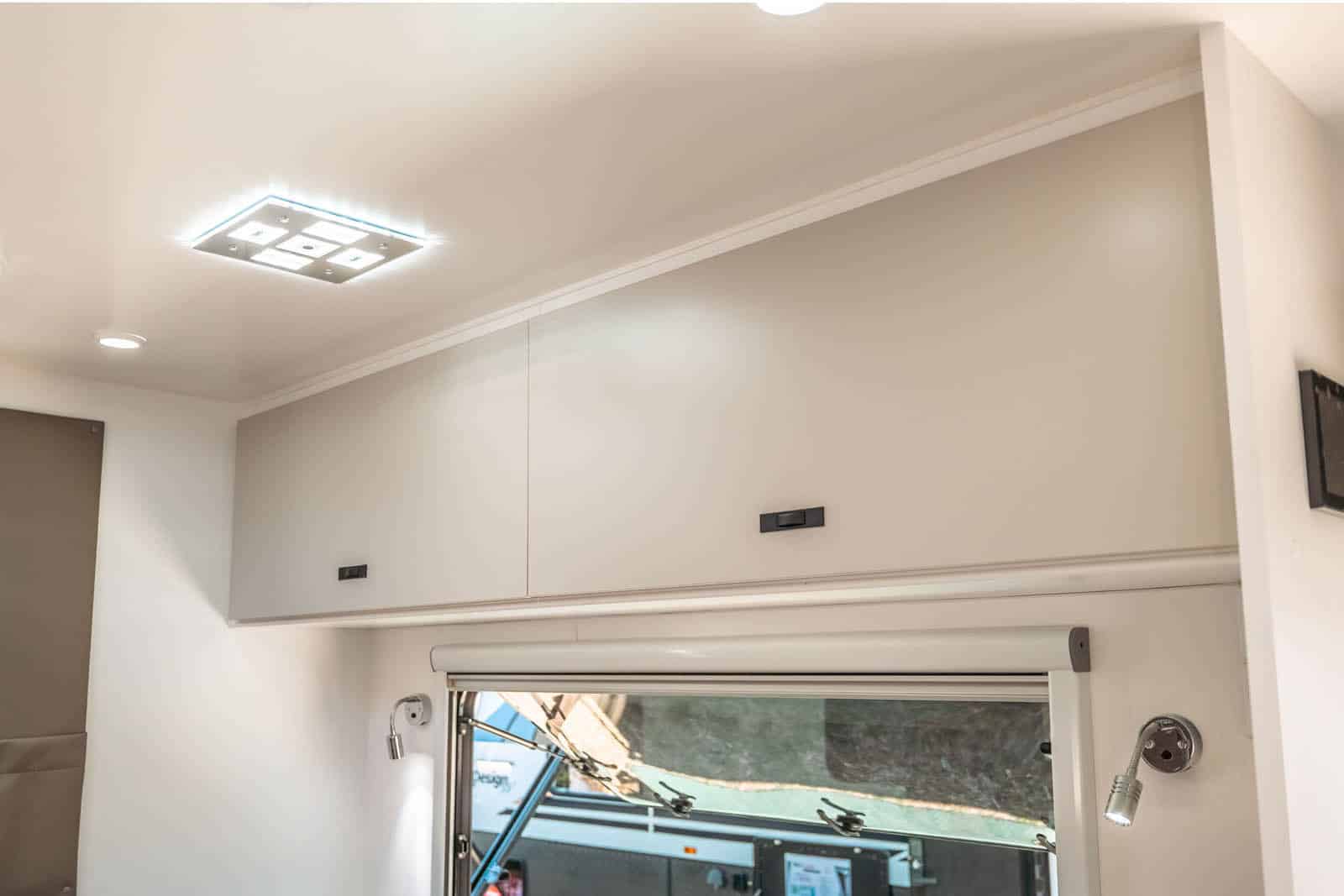

• 1 X LED Mini Roof Skylights with Blind to lounge & 1 large LED roof Skylight to bedroom
• Grab Handles to Each Corner of Van
• External Fold Down Picnic Table
• Quality BLACK Roll Out Awning
• Double Glazed Push Out Windows with Integrated Blinds
• Galvanized Front Tunnel Boot with Large Access Doors
• Checker Plate front, rear, and sides
• Black External Trim
• Aluminium Composite exterior cladding
• Security Mesh Locking Door 2 Radius Cnr Main Door
• 1 X LED Mini Roof Skylights with Blind to lounge & 1 large LED roof Skylight to bedroom
• Grab Handles to Each Corner of Van
• External Fold Down Picnic Table
INTERIOR
• Premium Vinyl Flooring
• Smoke Detector Fitted
• Fire Extinguisher Fitted
• One Piece Plywood Floor
• Lift-Up Under Bed Storage
• Recessed Cook Top with Lid over Stove
• Plastic Cutlery Drawer Insert
• Innerspring Mattress – Queen 6’2”
• Internal Roof Height of 6’6”
• Drawers on Metal Runners
• Stylish Positive Locking Door Latches with Gas Struts
• Plush Upholstery with Side Swabs to Dinette (Velcro attached)
• Full Laminate Splashback & Benchtops
• Bed Head Padding
• Porcelain Bowl Toilet
• Smoke Detector Fitted
• Fire Extinguisher Fitted
• One Piece Plywood Floor
• Lift-Up Under Bed Storage
• Recessed Cook Top with Lid over Stove
• Plastic Cutlery Drawer Insert
• Innerspring Mattress – Queen 6’2”
• Internal Roof Height of 6’6”
• Drawers on Metal Runners
• Stylish Positive Locking Door Latches with Gas Struts
• Plush Upholstery with Side Swabs to Dinette (Velcro attached)
• Full Laminate Splashback & Benchtops
• Bed Head Padding
• Porcelain Bowl Toilet
Plumbing
• Mains Pressure Water Inlet
• Waste Water Outlet
• Lockable Water Tank Inlet
• 2 x 95L Water Tanks
• 12V Water Pump
• 2 x 9kg Gas Bottles
• A-Frame Mains pressure Tap

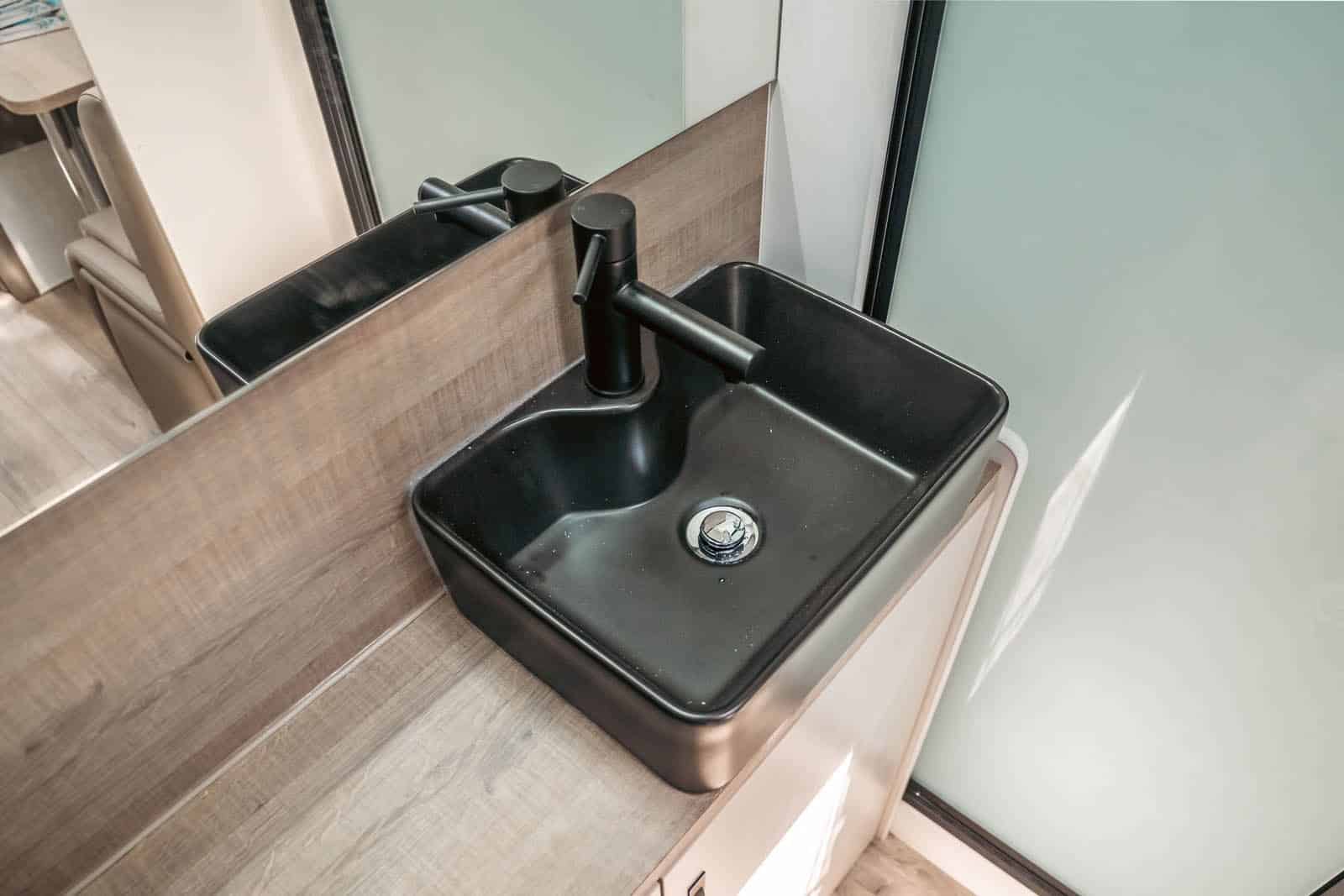

• Vanity to Ensuite
• Water Tank Gauge
• Large Deep Bowl kitchen sink
• Flick Mixer Tap – Kitchen and En-suite
• Waste Water Outlet
• Lockable Water Tank Inlet
• 2 x 95L Water Tanks
• 12V Water Pump
• 2 x 9kg Gas Bottles
• A-Frame Mains pressure Tap
• Vanity to Ensuite
• Water Tank Gauge
• Large Deep Bowl kitchen sink
• Flick Mixer Tap – Kitchen and En-suite
Electrical
• LED External Lights
• 1 x LED External Annexe Light
• LED Interior Lighting-Throughout
• 2 LED Reading Lights in Bedroom
• 2 LED Reading Lights in Lounge
• Smart Charger – Battery pack incl. 2 x 100AMP DC Battery
• 140W Solar Panel (Touring model) or 2 x 195W Solar Panels (Off Road model)
• Reversing Camera and Car Monitor Kit
• Roof Top Digital TV Antenna
• 24” Flatscreen TV on Wall Mounted Bracket
• CD/Radio Player W/2 X Internal & External Speakers
• 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
• 3 x Gas & 1 x 240V Hotplates with Griller

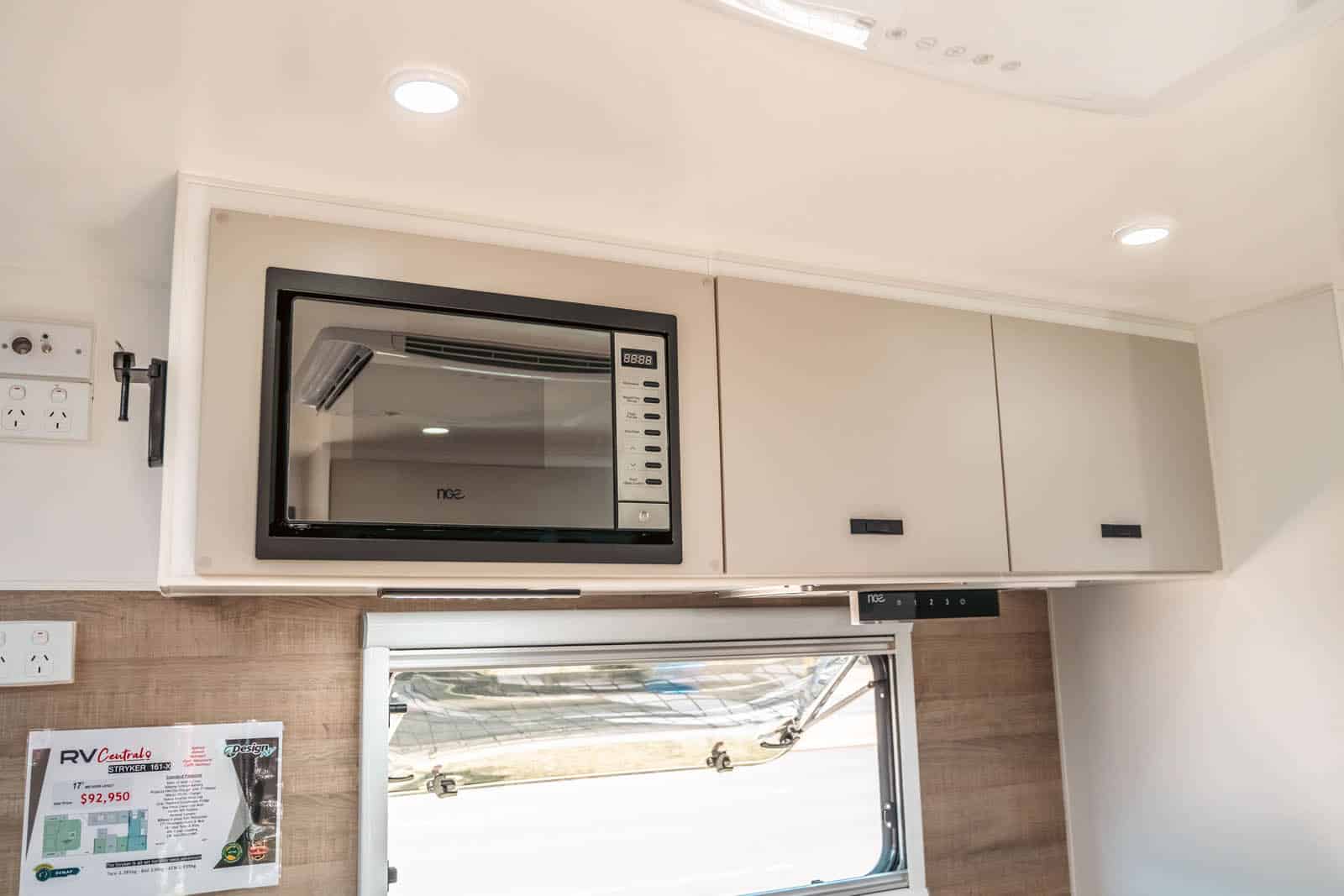

• Microwave Oven
• Gas/Electric HWS
• 3 Way GAS/ELEC. Fridge with Separate Door Freezer (Vented through Roof)
• Roof Top Reverse Cycle Air Conditioner
• 12V Rangehood
• Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge,)
• 240V 15Amp Inlet & 240V 10 Amp Outlet
• Circuit Breaker & Earth Leakage
• 12V/USB Socket at Kitchen Table
• Bedside and Outside table
• TV Coaxial Point at Outside Table
• Entry Light and Grab Handle
• 1 x LED External Annexe Light
• LED Interior Lighting-Throughout
• 2 LED Reading Lights in Bedroom
• 2 LED Reading Lights in Lounge
• Smart Charger – Battery pack incl. 2 x 100AMP DC Battery
• 140W Solar Panel (Touring model) or 2 x 195W Solar Panels (Off Road model)
• Reversing Camera and Car Monitor Kit
• Roof Top Digital TV Antenna
• 24” Flatscreen TV on Wall Mounted Bracket
• CD/Radio Player W/2 X Internal & External Speakers
• 12 Pin Trailer Plug with Charging & Fridge Cooling Capabilities
• 3 x Gas & 1 x 240V Hotplates with Griller
• Microwave Oven
• Gas/Electric HWS
• 3 Way GAS/ELEC. Fridge with Separate Door Freezer (Vented through Roof)
• Roof Top Reverse Cycle Air Conditioner
• 12V Rangehood
• Power Points (2 x Bedroom, 1 x Kitchen, 1 x Lounge,)
• 240V 15Amp Inlet & 240V 10 Amp Outlet
• Circuit Breaker & Earth Leakage
• 12V/USB Socket at Kitchen Table
• Bedside and Outside table
• TV Coaxial Point at Outside Table
• Entry Light and Grab Handle
